40|44 GR

Specifications

Manufacturer
Reserve
Name
40|44 GR
Series
40
Wheel Size
700c
Slot consumption
All
Rim Material
Carbon
Spoke Material
Steel
Front Rim Depth (mm)
40
Discipline
Gravel
Axle Standard
12x142
Rotor Mount
Centerlock
Tubeless Ready
Yes
Rim Width (mm)
27.4
Brake Type
Disc
Front Spoke Count
24
Slots
Wheel Front, Wheel Rear
Tyre Interface
Hooked
Rear Rim Depth (mm)
44
Rear Spoke Count
24
Position
Pair

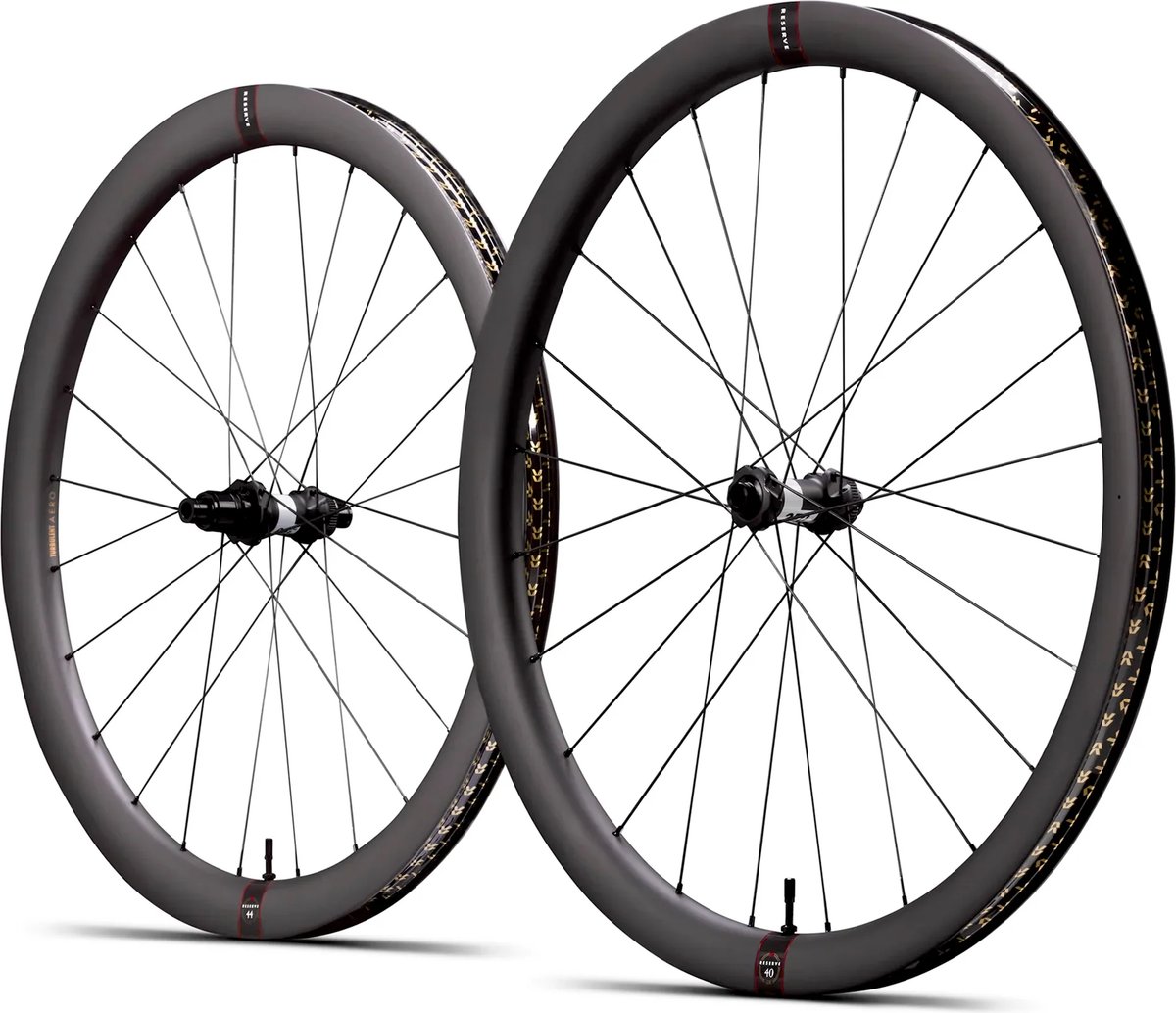

Reserve 40|44 GR

Wheel

Loading offers…

Compatibility

This Reserve 40|44 GR is a Reserve Gravel wheel. For best performance, use with other 40 components, though it is mechanically compatible with the parts listed below.

Compatible Brake Rotors20

6-BOLT DISC BRAKE ROTOR (SM-RT26)Recommended

Shimano

6-BOLT DISC BRAKE ROTOR (SM-RT26)

6-BOLT DISC BRAKE ROTOR (SM-RT56)Recommended

Shimano

6-BOLT DISC BRAKE ROTOR (SM-RT56)

6-BOLT DISC BRAKE ROTOR (SM-RT66)Recommended

Shimano

6-BOLT DISC BRAKE ROTOR (SM-RT66)

6-BOLT DISC BRAKE ROTOR ICE TECHNOLOGIESRecommended

Shimano

6-BOLT DISC BRAKE ROTOR ICE TECHNOLOGIES

6-BOLT DISC BRAKE ROTOR ICE TECHNOLOGIES FREEZARecommended

Shimano

6-BOLT DISC BRAKE ROTOR ICE TECHNOLOGIES FREEZA

Brake Rotor (RT-R00-140)Recommended

LTWOO

Brake Rotor (RT-R00-140)

Brake Rotor (RT-R00-160)Recommended

LTWOO

Brake Rotor (RT-R00-160)

CENTER LOCK DISC BRAKE ROTOR (RT-CL300)Recommended

Shimano

CENTER LOCK DISC BRAKE ROTOR (RT-CL300)

CENTER LOCK DISC BRAKE ROTOR (SM-RT10)Recommended

Shimano

CENTER LOCK DISC BRAKE ROTOR (SM-RT10)

CENTER LOCK DISC BRAKE ROTOR (SM-RT30)Recommended

Shimano

CENTER LOCK DISC BRAKE ROTOR (SM-RT30)

CENTER LOCK DISC BRAKE ROTOR (SM-RT54)Recommended

Shimano

CENTER LOCK DISC BRAKE ROTOR (SM-RT54)

CENTER LOCK DISC BRAKE ROTOR (SM-RT64)Recommended

Shimano

CENTER LOCK DISC BRAKE ROTOR (SM-RT64)

CENTER LOCK DISC BRAKE ROTOR ICE TECHNOLOGIES (SM-RT70)Recommended

Shimano

CENTER LOCK DISC BRAKE ROTOR ICE TECHNOLOGIES (SM-RT70)

CENTER LOCK DISC BRAKE ROTOR ICE TECHNOLOGIES (SM-RT800)Recommended

Shimano

CENTER LOCK DISC BRAKE ROTOR ICE TECHNOLOGIES (SM-RT800)

CenterLine Rotor CenterlockRecommended

SRAM

CenterLine Rotor Centerlock

CenterLine X RotorRecommended

SRAM

CenterLine X Rotor

CenterLine XR RotorRecommended

SRAM

CenterLine XR Rotor

DISC BRAKE ROTOR ICE TECHNOLOGIESRecommended

Shimano

DISC BRAKE ROTOR ICE TECHNOLOGIES

DISC BRAKE ROTOR ICE TECHNOLOGIES FREEZA (RT-CL800)Recommended

Shimano

DISC BRAKE ROTOR ICE TECHNOLOGIES FREEZA (RT-CL800)

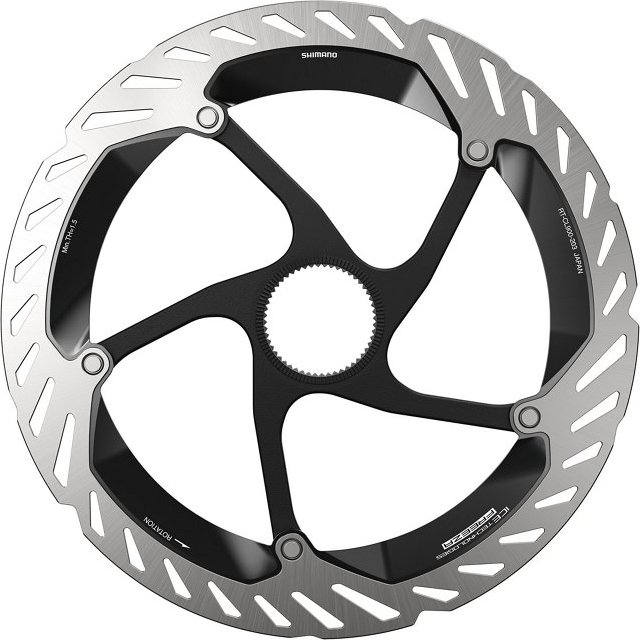

DISC BRAKE ROTOR ICE TECHNOLOGIES FREEZA (RT-CL900)Recommended

Shimano

DISC BRAKE ROTOR ICE TECHNOLOGIES FREEZA (RT-CL900)

Compatible Cassettes20

105 HG CASSETTE 11sRecommended

Shimano

105 HG CASSETTE 11s

  • Matches required 11-speed standard
  • Uses shimano hg standard
105 HG CASSETTE 12sRecommended

Shimano

105 HG CASSETTE 12s

  • Matches required 12-speed standard
11-34T HG CASSETTE 11sRecommended

Shimano

11-34T HG CASSETTE 11s

  • Matches required 11-speed standard
  • Uses shimano hg standard
ALFINE SINGLE SPROCKETRecommended

Shimano

ALFINE SINGLE SPROCKET

DEORE HG CASSETTE 10sRecommended

Shimano

DEORE HG CASSETTE 10s

  • Matches required 10-speed standard
  • Uses shimano hg standard
DEORE HG CASSETTE 11sRecommended

Shimano

DEORE HG CASSETTE 11s

  • Matches required 11-speed standard
  • Uses shimano hg standard
DEORE HYPERGLIDE+ CASSETTE 12sRecommended

Shimano

DEORE HYPERGLIDE+ CASSETTE 12s

  • Matches required 12-speed standard
  • Uses shimano hg plus standard
DEORE XT HG CASSETTE 11s Recommended

Shimano

DEORE XT HG CASSETTE 11s

  • Matches required 11-speed standard
  • Uses shimano hg standard
DEORE XT HYPERGLIDE+ CASSETTE 12s M8100Recommended

Shimano

DEORE XT HYPERGLIDE+ CASSETTE 12s M8100

  • Matches required 12-speed standard
  • Uses shimano hg plus standard
DEORE XT HYPERGLIDE+ CASSETTE 12s M8200Recommended

Shimano

DEORE XT HYPERGLIDE+ CASSETTE 12s M8200

  • Matches required 12-speed standard
  • Uses shimano hg plus standard
DURA-ACE HG CASSETTE 11sRecommended

Shimano

DURA-ACE HG CASSETTE 11s

  • Matches required 11-speed standard
  • Uses shimano hg standard
DURA-ACE HYPERGLIDE+ CASSETTE 12s Recommended

Shimano

DURA-ACE HYPERGLIDE+ CASSETTE 12s

  • Matches required 12-speed standard
  • Uses shimano hg plus standard
Force XG-1270 Cassette (CS-XG-1270-D1)Recommended

SRAM

Force XG-1270 Cassette (CS-XG-1270-D1)

  • Matches required 12-speed standard
  • Uses sram flattop standard
Force XG-1270 Cassette (CS-XG-1270-E1)Recommended

SRAM

Force XG-1270 Cassette (CS-XG-1270-E1)

  • Matches required 12-speed standard
  • Uses sram flattop standard
Force XPLR XG-1371 CassetteRecommended

SRAM

Force XPLR XG-1371 Cassette

  • Matches required 13-speed standard
  • Uses sram flattop standard
HG CASSETTE 10s (CS-HG50-10)Recommended

Shimano

HG CASSETTE 10s (CS-HG50-10)

  • Matches required 10-speed standard
  • Uses shimano hg standard
HG CASSETTE 10s (CS-HG500-10)Recommended

Shimano

HG CASSETTE 10s (CS-HG500-10)

  • Matches required 10-speed standard
  • Uses shimano hg standard
HG CASSETTE 11s Recommended

Shimano

HG CASSETTE 11s

  • Matches required 11-speed standard
  • Uses shimano hg standard
HG CASSETTE 12sRecommended

Shimano

HG CASSETTE 12s

  • Matches required 12-speed standard
  • Uses shimano hg standard
HG CASSETTE 7s (CS-HG200-7)Recommended

Shimano

HG CASSETTE 7s (CS-HG200-7)

  • Matches required 7-speed standard
  • Uses shimano hg standard

Frequently Asked Questions

What fits with Reserve 40|44 GR?

Reserve 40|44 GR is compatible with frames, brake rotors, tyres, cassettes that match its technical standards. Most importantly, it requires matching speed components.

Is Reserve 40|44 GR compatible with rim brakes?

No, Reserve 40|44 GR is designed specifically for disc systems. The mounting standards and architectural requirements for disc brakes are completely different and cannot be mixed.
