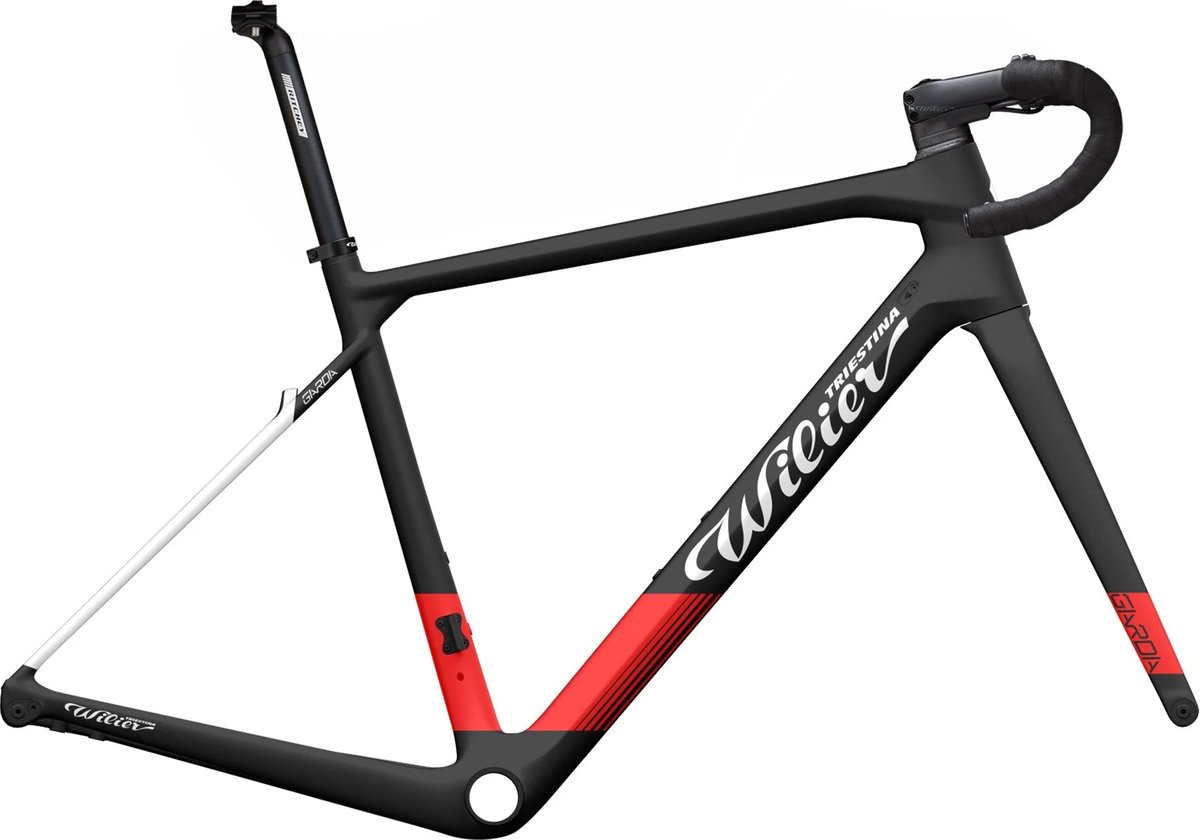

Wilier Garda

Frame

Garda

Specifications

Manufacturer
Wilier
Name
Garda
Discipline
Road
Material
Carbon
Head Tube
Tapered
Max Tyre Width (mm)
32
Seatpost Diameter (mm)
27.2
Wheel Sizes
700c / 29"
Frame Size
XS, S, M, L, XL, XXL
Front Axle Standard
12 × 100 mm
Rear Axle Standard
12 × 142 mm
Rear Derailleur Mount
Standard Hanger[1]
BB Standard
BB86 PRESSFIT[2]
Disc Brake Mount
Flat Mount
Di2 Compatible
Yes
Cable Routing
Integrated
Weight (g)
1150
Sources
  1. [1] elanusparts.com, checked 17 Aug 2026: Rear Derailleur Mount
  2. [2] wilier.com, checked 23 Aug 2026: BB Standard

Included Components

  • fork
    Wilier Garda Fork
  • headset
    Wilier Garda Headset
  • seatpost
    Wilier Garda Seatpost

Compatibility

Wilier Garda is a Wilier road frame. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Brake calipers this frame mounts20

2-PISTON FLAT MOUNT BRAKE CALIPERMechanically compatible

Shimano

2-PISTON FLAT MOUNT BRAKE CALIPER

  • Both use a flat mount disc brake
Apex 1 Hydraulic Disc BrakeMechanically compatible

SRAM

Apex 1 Hydraulic Disc Brake

  • Both use a flat mount disc brake
Apex Disc BrakeMechanically compatible

SRAM

Apex Disc Brake

  • Both use a flat mount disc brake
Brake Caliper (BR-R03A-140R)Mechanically compatible

LTWOO

Brake Caliper (BR-R03A-140R)

  • Both use a flat mount disc brake
Brake Caliper (BR-R03B-140R)Mechanically compatible

LTWOO

Brake Caliper (BR-R03B-140R)

  • Both use a flat mount disc brake
Brake Caliper (BR-R04A-160F)Mechanically compatible

LTWOO

Brake Caliper (BR-R04A-160F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R04B-160F)Mechanically compatible

LTWOO

Brake Caliper (BR-R04B-160F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R06A-140F)Mechanically compatible

LTWOO

Brake Caliper (BR-R06A-140F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R06B-140F)Mechanically compatible

LTWOO

Brake Caliper (BR-R06B-140F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R07A-160R)Mechanically compatible

LTWOO

Brake Caliper (BR-R07A-160R)

  • Both use a flat mount disc brake
Brake Caliper (BR-R07B-160R)Mechanically compatible

LTWOO

Brake Caliper (BR-R07B-160R)

  • Both use a flat mount disc brake
EVO X2 FLATMOUNTMechanically compatible

Hope

EVO X2 FLATMOUNT

  • Both use a flat mount disc brake
Force Aero Disc BrakeMechanically compatible

SRAM

Force Aero Disc Brake

  • Both use a flat mount disc brake
RA7800 Hydraulic Brake Caliper Set (Road/Gravel)Mechanically compatible

WheelTop

RA7800 Hydraulic Brake Caliper Set (Road/Gravel)

  • Both use a flat mount disc brake
Red Aero Disc BrakeMechanically compatible

SRAM

Red Aero Disc Brake

  • Both use a flat mount disc brake
Rival 1 HRD DiscMechanically compatible

SRAM

Rival 1 HRD Disc

  • Both use a flat mount disc brake
Rival Aero Disc BrakeMechanically compatible

SRAM

Rival Aero Disc Brake

  • Both use a flat mount disc brake
RX4 SL FMMechanically compatible

Hope

RX4 SL FM

  • Both use a flat mount disc brake
105 FRONT BRAKE CALIPERMechanically compatible

Shimano

105 FRONT BRAKE CALIPER

  • Both use a flat mount disc brake
105 HYDRAULIC DISC BRAKE FRONT CALIPERMechanically compatible

Shimano

105 HYDRAULIC DISC BRAKE FRONT CALIPER

  • Both use a flat mount disc brake

Seatposts for this seat tube20

AFTERBURNER seatpostMechanically compatible

FSA

AFTERBURNER seatpost

  • Both are 27.2mm
Classic 2-Bolt SeatpostMechanically compatible

Ritchey

Classic 2-Bolt Seatpost

  • Both are 27.2mm
Classic Zero SeatpostMechanically compatible

Ritchey

Classic Zero Seatpost

  • Both are 27.2mm
Coast Suspension Dropper PostMechanically compatible

PNW Components

Coast Suspension Dropper Post

  • Both are 27.2mm
Comp 2-Bolt SeatpostMechanically compatible

Ritchey

Comp 2-Bolt Seatpost

  • Both are 27.2mm
Comp Carbon 2-Bolt SeatpostMechanically compatible

Ritchey

Comp Carbon 2-Bolt Seatpost

  • Both are 27.2mm
Comp Carbon Zero SeatpostMechanically compatible

Ritchey

Comp Carbon Zero Seatpost

  • Both are 27.2mm
Comp Trail Zero SeatpostMechanically compatible

Ritchey

Comp Trail Zero Seatpost

  • Both are 27.2mm
Comp Zero SeatpostMechanically compatible

Ritchey

Comp Zero Seatpost

  • Both are 27.2mm
Cross 25mm SeatpostMechanically compatible

Deda Elementi

Cross 25mm Seatpost

  • Both are 27.2mm
Discover Carbon SeatpostMechanically compatible

PRO

Discover Carbon Seatpost

  • Both are 27.2mm
Discover SeatpostMechanically compatible

PRO

Discover Seatpost

  • Both are 27.2mm
Duncan 2.0 Seatpost 15mm OffsetMechanically compatible

Syncros

Duncan 2.0 Seatpost 15mm Offset

  • Both are 27.2mm
Duncan SL Seatpost 10mm OffsetMechanically compatible

Syncros

Duncan SL Seatpost 10mm Offset

  • Both are 27.2mm
Duncan SL Seatpost 25mm OffsetMechanically compatible

Syncros

Duncan SL Seatpost 25mm Offset

  • Both are 27.2mm
E20 iMechanically compatible

KS

E20 i

  • Both are 27.2mm
EA50 SeatpostMechanically compatible

Easton

EA50 Seatpost

  • Both are 27.2mm
EA70 Seatpost (20mm Setback)Mechanically compatible

Easton

EA70 Seatpost (20mm Setback)

  • Both are 27.2mm
EA70 Seatpost (Zero Setback)Mechanically compatible

Easton

EA70 Seatpost (Zero Setback)

  • Both are 27.2mm
EA90 ISA Seatpost (20mm Setback)Mechanically compatible

Easton

EA90 ISA Seatpost (20mm Setback)

  • Both are 27.2mm

Bottom brackets for this frame shell20

BB386 crank to SHIMANO PFBB86Mechanically compatible

FSA

BB386 crank to SHIMANO PFBB86

  • Both are bb86 pressfit bottom bracket shells
BB4124PRMechanically compatible

Token

BB4124PR

  • Both are bb86 pressfit bottom bracket shells
BB4124PSMechanically compatible

Token

BB4124PS

  • Both are bb86 pressfit bottom bracket shells
BB4125Mechanically compatible

Token

BB4125

  • Both are bb86 pressfit bottom bracket shells
🚲Mechanically compatible

Token

BB4129

  • Both are bb86 pressfit bottom bracket shells
BB4129SRMechanically compatible

Token

BB4129SR

  • Both are bb86 pressfit bottom bracket shells
BB841PRMechanically compatible

Token

BB841PR

  • Both are bb86 pressfit bottom bracket shells
BB841PSMechanically compatible

Token

BB841PS

  • Both are bb86 pressfit bottom bracket shells
BB841T-41Mechanically compatible

Token

BB841T-41

  • Both are bb86 pressfit bottom bracket shells
BB841T-41RMechanically compatible

Token

BB841T-41R

  • Both are bb86 pressfit bottom bracket shells
BB86 Bottom Bracket (Shimano 24mm)Mechanically compatible

Cybrei

BB86 Bottom Bracket (Shimano 24mm)

  • Both are bb86 pressfit bottom bracket shells
BB86 Bottom Bracket (SRAM DUB)Mechanically compatible

Cybrei

BB86 Bottom Bracket (SRAM DUB)

  • Both are bb86 pressfit bottom bracket shells
BB86 to 28/30MM Flanged, Dual Row PressFit 86/92 for Praxis - Compatible Cranks ABEC-3 Bottom BracketMechanically compatible

Wheels Manufacturing

BB86 to 28/30MM Flanged, Dual Row PressFit 86/92 for Praxis - Compatible Cranks ABEC-3 Bottom Bracket

  • Both are bb86 pressfit bottom bracket shells
BB86 to 29MM (DUB Compatible) Flanged, Dual Row PressFit 86/92 ABEC-3 Bottom BracketMechanically compatible

Wheels Manufacturing

BB86 to 29MM (DUB Compatible) Flanged, Dual Row PressFit 86/92 ABEC-3 Bottom Bracket

  • Both are bb86 pressfit bottom bracket shells
BB86 to 30MM Flanged, Dual Row PressFit 86/92 ABEC-3 Bottom BracketMechanically compatible

Wheels Manufacturing

BB86 to 30MM Flanged, Dual Row PressFit 86/92 ABEC-3 Bottom Bracket

  • Both are bb86 pressfit bottom bracket shells
BB86/92 Thread Together ABEC-3 BB for 24/22mm (SRAM) CranksMechanically compatible

Wheels Manufacturing

BB86/92 Thread Together ABEC-3 BB for 24/22mm (SRAM) Cranks

  • Both are bb86 pressfit bottom bracket shells
BB86/92 Thread Together ABEC-3 BB for 24mm (Shimano) CranksMechanically compatible

Wheels Manufacturing

BB86/92 Thread Together ABEC-3 BB for 24mm (Shimano) Cranks

  • Both are bb86 pressfit bottom bracket shells
BB86/92 Thread Together Angular Contact BB for 24/22mm (SRAM) CranksMechanically compatible

Wheels Manufacturing

BB86/92 Thread Together Angular Contact BB for 24/22mm (SRAM) Cranks

  • Both are bb86 pressfit bottom bracket shells
BB86/92 Thread Together Angular Contact BB for 24mm (Shimano) CranksMechanically compatible

Wheels Manufacturing

BB86/92 Thread Together Angular Contact BB for 24mm (Shimano) Cranks

  • Both are bb86 pressfit bottom bracket shells
BB86/92 Thread Together ZERØ Ceramic BB for 24/22mm (SRAM) CranksMechanically compatible

Wheels Manufacturing

BB86/92 Thread Together ZERØ Ceramic BB for 24/22mm (SRAM) Cranks

  • Both are bb86 pressfit bottom bracket shells

Forks with a matching steerer and wheel size20

29er Full Carbon Rigid Mtb Plus ForkMechanically compatible

LightCarbon

29er Full Carbon Rigid Mtb Plus Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake CX Fork Gravel Carbon ForkMechanically compatible

LightCarbon

700C Disc Brake CX Fork Gravel Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Aero Gravel Bike ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Aero Gravel Bike Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Racing Gravel ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Racing Gravel Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Allroad ForkMechanically compatible

Deda Elementi

Allroad Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
BelvaMechanically compatible

Formula

Belva

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber ZMechanically compatible

Marzocchi

Bomber Z

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1Mechanically compatible

Marzocchi

Bomber Z1

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 CoilMechanically compatible

Marzocchi

Bomber Z1 Coil

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 E-OptimizedMechanically compatible

Marzocchi

Bomber Z1 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2Mechanically compatible

Marzocchi

Bomber Z2

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2 E-OptimizedMechanically compatible

Marzocchi

Bomber Z2 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Cutthroat Carbon ForkMechanically compatible

Salsa

Cutthroat Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Firestarter Carbon ForkMechanically compatible

Salsa

Firestarter Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit SL

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
JOSH BRYCELAND SELVAMechanically compatible

Formula

JOSH BRYCELAND SELVA

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Pista LeggeraMechanically compatible

Columbus

Pista Leggera

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
RC32 29Mechanically compatible

X-Fusion

RC32 29

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Road In-Route Fork 43mmMechanically compatible

ENVE

Road In-Route Fork 43mm

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels

Frequently Asked Questions

What fits Wilier Garda?

On this page we list brake calipers this frame mounts, seatposts for this seat tube, bottom brackets for this frame shell, forks with a matching steerer and wheel size. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.

Can I mix Wilier Garda with MTB components?

Wilier Garda is recorded as a road component. Some standards do carry across (cassette spacing at a given speed count, for instance), but cable pull ratio and chainline frequently differ between road and MTB groups, so check the specific pairing rather than assuming it carries over.
