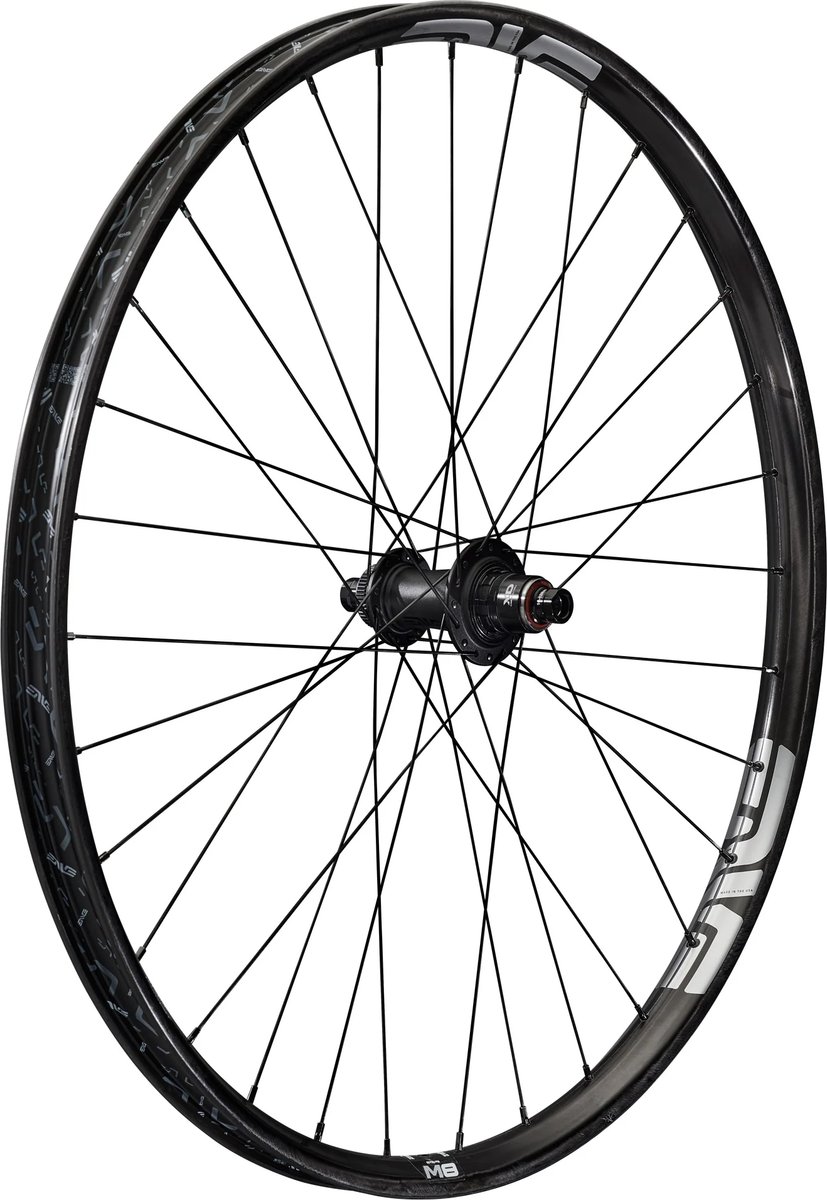

ENVE M8 29" Rear 12x148

Wheel

Specifications

Manufacturer: ENVE
Name: M8 29" Rear 12x148
MPN: 100-2319-002
Position: Rear
Wheel Size: 700c / 29"
Rim Width (mm): 32
Freehub Body: Microspline, XD
Rear Axle Standard: 12 × 148 mm (Boost)
Axle Standard (legacy): 12 × 148 mm (Boost)
Brake Type: Disc
Tubeless Ready: Yes
Tyre Interface: Hookless
Rim Material: Carbon
Rear Rim Depth (mm): 21
Rear Spoke Count: 28
Discipline: Mountain

Compatibility

ENVE M8 29" Rear 12x148 is a ENVE mtb wheel. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Cassettes for this wheel20

Mechanically compatible

SRAM

XG-1150 FULL PIN Cassette

Takes a XD freehub body

Mechanically compatible

SRAM

XG-1175 FULL PIN Cassette

Takes a XD freehub body

Mechanically compatible

SRAM

XG-1195 X-DOME Cassette

Takes a XD freehub body

Mechanically compatible

SRAM

XG-1199 X-DOME Cassette

Takes a XD freehub body

Mechanically compatible

SRAM

XG-795 MINI BLOCK Cassette

Takes a XD freehub body

🚲Mechanically compatible

microSHIFT

Advent MX G-Series 11 Speed SpeedRamp Cassette, XD Driver

Takes a XD freehub body

Mechanically compatible

Shimano

DEORE HYPERGLIDE+ CASSETTE 12s

Takes a MICROSPLINE freehub body

Mechanically compatible

Shimano

DEORE XT HYPERGLIDE+ CASSETTE 12s M8100

Takes a MICROSPLINE freehub body

Mechanically compatible

Shimano

SLX HYPERGLIDE+ CASSETTE 12s

Takes a MICROSPLINE freehub body

Mechanically compatible

SRAM

XG-1275 Eagle Cassette (CS-XG-1275-B1)

Takes a XD freehub body

Mechanically compatible

SRAM

XG-1275 Eagle Cassette (CS-XG-1275-C1)

Takes a XD freehub body

Mechanically compatible

SRAM

XG-1295 Eagle Cassette (CS-XG-1295-A3)

Takes a XD freehub body

Mechanically compatible

SRAM

XG-1295 Eagle Cassette (CS-XG-1295-B1)

Takes a XD freehub body

Mechanically compatible

SRAM

XG-1299 Eagle Cassette (CS-XG-1299-A2)

Takes a XD freehub body

Mechanically compatible

SRAM

XG-1299 Eagle Cassette (CS-XG-1299-B1)

Takes a XD freehub body

Mechanically compatible

SRAM

XG-1299 Eagle Cassette (CS-XG-1299-C1)

Takes a XD freehub body

Mechanically compatible

SRAM

XS-1275 Eagle Transmission Cassette

Takes a XD freehub body

Mechanically compatible

SRAM

XS-1295 Eagle Transmission Cassette

Takes a XD freehub body

Mechanically compatible

SRAM

XS-1297 Eagle Transmission Cassette

Takes a XD freehub body

Mechanically compatible

SRAM

XS-1299 Eagle Transmission Cassette

Takes a XD freehub body

Tyres in this wheel size20

Mechanically compatible

Vittoria

Adventure Tech

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Continental

Aero 111

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Vittoria

Agarro Trail 29

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Maxxis

Aggressor (OEM) EXO 29

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Maxxis

Aggressor DD 29

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Maxxis

Aggressor EXO 29

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

Agilest 700c

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

Agilest Duro

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

Agilest Duro TLR

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

Agilest Fast

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

Agilest Fast TLR

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

Agilest Light

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

Agilest TLR

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

Agilest TU

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

AGXero

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Panaracer

AGXero TLR

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Schwalbe

Albert GRAVITY PRO Radial Soft 29

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Schwalbe

Albert GRAVITY PRO Radial Ultra Soft 29

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Schwalbe

Albert TRAIL PRO Radial Soft 29

Same bead-seat diameter: both are 700c / 29"

Mechanically compatible

Schwalbe

Albert TRAIL PRO Radial Ultra Soft 29

Same bead-seat diameter: both are 700c / 29"

Frequently Asked Questions

What fits ENVE M8 29" Rear 12x148?

On this page we list cassettes for this wheel, tyres in this wheel size. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.

Is ENVE M8 29" Rear 12x148 compatible with rim brakes?

No. ENVE M8 29" Rear 12x148 is built for disc systems. The mounting standards and wheel/frame interfaces for disc brakes are different and cannot be mixed.

Can I mix ENVE M8 29" Rear 12x148 with road components?

ENVE M8 29" Rear 12x148 is recorded as a mtb component. Some standards do carry across (cassette spacing at a given speed count, for instance), but cable pull ratio and chainline frequently differ between mtb and road groups, so check the specific pairing rather than assuming it carries over.
