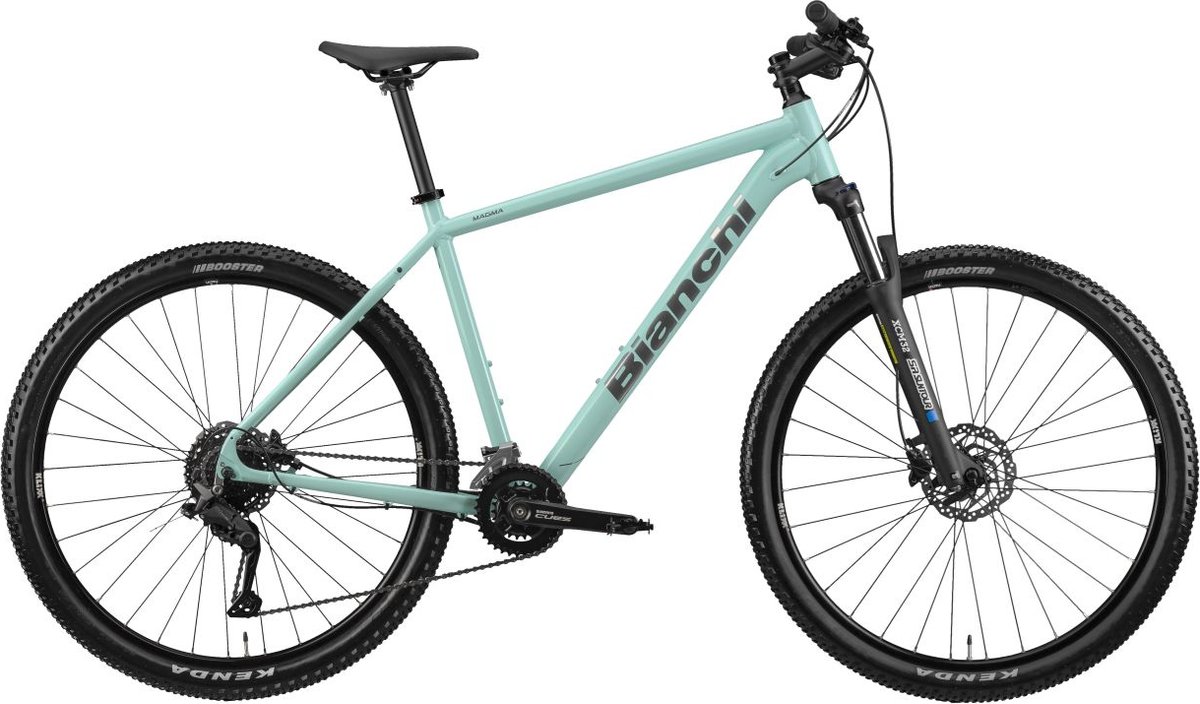

Bianchi Magma 29

Frame

Magma 29

Specifications

Manufacturer
Bianchi
Name
Magma 29
Discipline
Mountain
Material
Aluminum
Head Tube
Tapered
Max Tyre Width (mm)
57
Max Fork Travel (mm)
100
Seatpost Diameter (mm)
27.2[1]
Wheel Sizes
700c / 29"
Frame Size
38, 43, 48, 53
Front Axle Standard
12 × 100 mm
Rear Axle Standard
12 × 142 mm
Rear Derailleur Mount
Standard Hanger
Disc Brake Mount
Post Mount
Di2 Compatible
Yes
Cable Routing
Internal
Sources
  1. [1] bianchi.com, checked 23 Aug 2026: Seatpost Diameter (mm)

Included Components

  • fork
    Bianchi Magma 29 Fork
  • headset
    Bianchi Magma 29 Headset
  • seatpost
    Bianchi Magma 29 Seatpost

Compatibility

Bianchi Magma 29 is a Bianchi mtb frame. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Brake calipers this frame mounts20

2-PISTON BRAKE CALIPER (BR-MT200)Mechanically compatible

Shimano

2-PISTON BRAKE CALIPER (BR-MT200)

  • Both use a post mount disc brake
2-PISTON BRAKE CALIPER (BR-MT500)Mechanically compatible

Shimano

2-PISTON BRAKE CALIPER (BR-MT500)

  • Both use a post mount disc brake
4-PISTON BRAKE CALIPERMechanically compatible

Shimano

4-PISTON BRAKE CALIPER

  • Both use a post mount disc brake
4-PISTON BRAKE CALIPER (BR-MT420)Mechanically compatible

Shimano

4-PISTON BRAKE CALIPER (BR-MT420)

  • Both use a post mount disc brake
4-PISTON BRAKE CALIPER (BR-MT520)Mechanically compatible

Shimano

4-PISTON BRAKE CALIPER (BR-MT520)

  • Both use a post mount disc brake
AFTERBURNER MTBMechanically compatible

FSA

AFTERBURNER MTB

  • Both use a post mount disc brake
Brake Caliper (BR-M00B-160F)Mechanically compatible

LTWOO

Brake Caliper (BR-M00B-160F)

  • Both use a post mount disc brake
Brake Caliper (BR-M00B-160R)Mechanically compatible

LTWOO

Brake Caliper (BR-M00B-160R)

  • Both use a post mount disc brake
Brake Caliper (BR-M01B-160F)Mechanically compatible

LTWOO

Brake Caliper (BR-M01B-160F)

  • Both use a post mount disc brake
Brake Caliper (BR-M01B-160R)Mechanically compatible

LTWOO

Brake Caliper (BR-M01B-160R)

  • Both use a post mount disc brake
DEORE 2-PISTON BRAKE CALIPER (BR-MT410)Mechanically compatible

Shimano

DEORE 2-PISTON BRAKE CALIPER (BR-MT410)

  • Both use a post mount disc brake
EVO GR4Mechanically compatible

Hope

EVO GR4

  • Both use a post mount disc brake
EVO TR4Mechanically compatible

Hope

EVO TR4

  • Both use a post mount disc brake
Evo X2Mechanically compatible

Hope

Evo X2

  • Both use a post mount disc brake
MA3000 Hydraulic Brake Caliper Set (MTB)Mechanically compatible

WheelTop

MA3000 Hydraulic Brake Caliper Set (MTB)

  • Both use a post mount disc brake
RX4+SL PMMechanically compatible

Hope

RX4+SL PM

  • Both use a post mount disc brake
Tech 3 DuoMechanically compatible

Hope

Tech 3 Duo

  • Both use a post mount disc brake
Tech 4 V4Mechanically compatible

Hope

Tech 4 V4

  • Both use a post mount disc brake
XCR Pro E4Mechanically compatible

Hope

XCR Pro E4

  • Both use a post mount disc brake
XCR Pro X2Mechanically compatible

Hope

XCR Pro X2

  • Both use a post mount disc brake

Seatposts for this seat tube20

AFTERBURNER seatpostMechanically compatible

FSA

AFTERBURNER seatpost

  • Both are 27.2mm
Classic 2-Bolt SeatpostMechanically compatible

Ritchey

Classic 2-Bolt Seatpost

  • Both are 27.2mm
Classic Zero SeatpostMechanically compatible

Ritchey

Classic Zero Seatpost

  • Both are 27.2mm
Coast Suspension Dropper PostMechanically compatible

PNW Components

Coast Suspension Dropper Post

  • Both are 27.2mm
Comp 2-Bolt SeatpostMechanically compatible

Ritchey

Comp 2-Bolt Seatpost

  • Both are 27.2mm
Comp Carbon 2-Bolt SeatpostMechanically compatible

Ritchey

Comp Carbon 2-Bolt Seatpost

  • Both are 27.2mm
Comp Carbon Zero SeatpostMechanically compatible

Ritchey

Comp Carbon Zero Seatpost

  • Both are 27.2mm
Comp Trail Zero SeatpostMechanically compatible

Ritchey

Comp Trail Zero Seatpost

  • Both are 27.2mm
Comp Zero SeatpostMechanically compatible

Ritchey

Comp Zero Seatpost

  • Both are 27.2mm
Cross 25mm SeatpostMechanically compatible

Deda Elementi

Cross 25mm Seatpost

  • Both are 27.2mm
Discover Carbon SeatpostMechanically compatible

PRO

Discover Carbon Seatpost

  • Both are 27.2mm
Discover SeatpostMechanically compatible

PRO

Discover Seatpost

  • Both are 27.2mm
Duncan 2.0 Seatpost 15mm OffsetMechanically compatible

Syncros

Duncan 2.0 Seatpost 15mm Offset

  • Both are 27.2mm
Duncan SL Seatpost 10mm OffsetMechanically compatible

Syncros

Duncan SL Seatpost 10mm Offset

  • Both are 27.2mm
Duncan SL Seatpost 25mm OffsetMechanically compatible

Syncros

Duncan SL Seatpost 25mm Offset

  • Both are 27.2mm
E20 iMechanically compatible

KS

E20 i

  • Both are 27.2mm
EA50 SeatpostMechanically compatible

Easton

EA50 Seatpost

  • Both are 27.2mm
EA70 Seatpost (20mm Setback)Mechanically compatible

Easton

EA70 Seatpost (20mm Setback)

  • Both are 27.2mm
EA70 Seatpost (Zero Setback)Mechanically compatible

Easton

EA70 Seatpost (Zero Setback)

  • Both are 27.2mm
EA90 ISA Seatpost (20mm Setback)Mechanically compatible

Easton

EA90 ISA Seatpost (20mm Setback)

  • Both are 27.2mm

Forks with a matching steerer and wheel size20

29er Full Carbon Rigid Mtb Plus ForkMechanically compatible

LightCarbon

29er Full Carbon Rigid Mtb Plus Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake CX Fork Gravel Carbon ForkMechanically compatible

LightCarbon

700C Disc Brake CX Fork Gravel Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Aero Gravel Bike ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Aero Gravel Bike Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Racing Gravel ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Racing Gravel Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Allroad ForkMechanically compatible

Deda Elementi

Allroad Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Cutthroat Carbon ForkMechanically compatible

Salsa

Cutthroat Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Firestarter Carbon ForkMechanically compatible

Salsa

Firestarter Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit SL

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Pista LeggeraMechanically compatible

Columbus

Pista Leggera

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Road In-Route Fork 43mmMechanically compatible

ENVE

Road In-Route Fork 43mm

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Road In-Route Fork 50mmMechanically compatible

ENVE

Road In-Route Fork 50mm

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

TR Boost 29

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Waxwing Carbon ForkMechanically compatible

Salsa

Waxwing Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
32 FACTORY TC - GRIP SLMechanically compatible

Fox

32 FACTORY TC - GRIP SL

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
32 PERFORMANCE TAPER-CAST - GRIPMechanically compatible

Fox

32 PERFORMANCE TAPER-CAST - GRIP

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Carbon Gravel Fork No.9 MCX+Mechanically compatible

Whisky Parts Co

Carbon Gravel Fork No.9 MCX+

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Crosslight CC Disc ForkMechanically compatible

Kinesis

Crosslight CC Disc Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Crosslight CX Disc ForkMechanically compatible

Kinesis

Crosslight CX Disc Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
CXD ForkMechanically compatible

Kinesis

CXD Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels

Frequently Asked Questions

What fits Bianchi Magma 29?

On this page we list brake calipers this frame mounts, seatposts for this seat tube, forks with a matching steerer and wheel size. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.

Can I mix Bianchi Magma 29 with road components?

Bianchi Magma 29 is recorded as a mtb component. Some standards do carry across (cassette spacing at a given speed count, for instance), but cable pull ratio and chainline frequently differ between mtb and road groups, so check the specific pairing rather than assuming it carries over.
