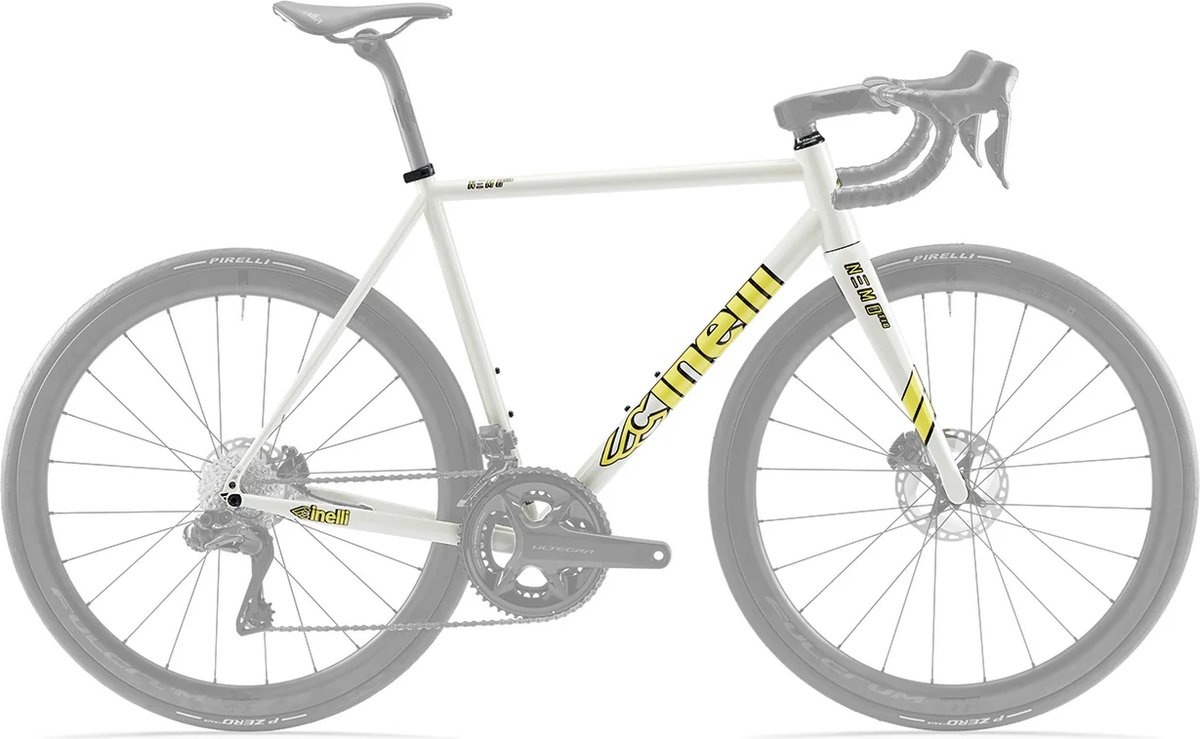

Cinelli Nemo TIG Road

Frame

Nemo TIG Road

Specifications

Manufacturer
Cinelli
Name
Nemo TIG Road
MPN
11NMD3480EOM
Discipline
Road
Material
Steel
Head Tube
Tapered
Upper S.H.I.S
IS42/28.6
Lower S.H.I.S
IS52/40
Max Tyre Width (mm)
32
Seatpost Diameter (mm)
27.2
Wheel Sizes
700c / 29"
Frame Size
48, 51, 54, 56, 59, 61
Front Axle Standard
12 × 100 mm
Rear Axle Standard
12 × 142 mm
Rear Derailleur Mount
Standard Hanger
BB Standard
T47 EXTERNAL
BB Thread Type
T47
Disc Brake Mount
Flat Mount
Cable Routing
Integrated
Weight (g)
2000

Included Components

  • Cinelli Nemo TIG Road Fork
    fork
    Cinelli Nemo TIG Road Fork
  • Cinelli Nemo TIG Road Headset
    headset
    Cinelli Nemo TIG Road Headset

Compatibility

Cinelli Nemo TIG Road is a Cinelli road frame. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Brake calipers this frame mounts20

2-PISTON FLAT MOUNT BRAKE CALIPERRecommended

Shimano

2-PISTON FLAT MOUNT BRAKE CALIPER

  • Both use a flat mount disc brake
Apex 1 Hydraulic Disc BrakeRecommended

SRAM

Apex 1 Hydraulic Disc Brake

  • Both use a flat mount disc brake
Apex Disc BrakeRecommended

SRAM

Apex Disc Brake

  • Both use a flat mount disc brake
Brake Caliper (BR-R03A-140R)Recommended

LTWOO

Brake Caliper (BR-R03A-140R)

  • Both use a flat mount disc brake
Brake Caliper (BR-R03B-140R)Recommended

LTWOO

Brake Caliper (BR-R03B-140R)

  • Both use a flat mount disc brake
Brake Caliper (BR-R04A-160F)Recommended

LTWOO

Brake Caliper (BR-R04A-160F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R04B-160F)Recommended

LTWOO

Brake Caliper (BR-R04B-160F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R06A-140F)Recommended

LTWOO

Brake Caliper (BR-R06A-140F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R06B-140F)Recommended

LTWOO

Brake Caliper (BR-R06B-140F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R07A-160R)Recommended

LTWOO

Brake Caliper (BR-R07A-160R)

  • Both use a flat mount disc brake
Brake Caliper (BR-R07B-160R)Recommended

LTWOO

Brake Caliper (BR-R07B-160R)

  • Both use a flat mount disc brake
EVO X2 FLATMOUNTRecommended

Hope

EVO X2 FLATMOUNT

  • Both use a flat mount disc brake
Force Aero Disc BrakeRecommended

SRAM

Force Aero Disc Brake

  • Both use a flat mount disc brake
RA7800 Hydraulic Brake Caliper Set (Road/Gravel)Recommended

WheelTop

RA7800 Hydraulic Brake Caliper Set (Road/Gravel)

  • Both use a flat mount disc brake
Red Aero Disc BrakeRecommended

SRAM

Red Aero Disc Brake

  • Both use a flat mount disc brake
Rival 1 HRD DiscRecommended

SRAM

Rival 1 HRD Disc

  • Both use a flat mount disc brake
Rival Aero Disc BrakeRecommended

SRAM

Rival Aero Disc Brake

  • Both use a flat mount disc brake
RX4 SL FMRecommended

Hope

RX4 SL FM

  • Both use a flat mount disc brake
105 FRONT BRAKE CALIPERRecommended

Shimano

105 FRONT BRAKE CALIPER

  • Both use a flat mount disc brake
105 HYDRAULIC DISC BRAKE FRONT CALIPERRecommended

Shimano

105 HYDRAULIC DISC BRAKE FRONT CALIPER

  • Both use a flat mount disc brake

Bottom brackets for this frame shell20

BB47R24Recommended

Token

BB47R24

  • Both are t47 external bottom bracket shells
BB47R29Recommended

Token

BB47R29

  • Both are t47 external bottom bracket shells
BB47R30Recommended

Token

BB47R30

  • Both are t47 external bottom bracket shells
BB47R386Recommended

Token

BB47R386

  • Both are t47 external bottom bracket shells
BB47RGXPRecommended

Token

BB47RGXP

  • Both are t47 external bottom bracket shells
BB47V24Recommended

Token

BB47V24

  • Both are t47 external bottom bracket shells
BB47V25Recommended

Token

BB47V25

  • Both are t47 external bottom bracket shells
BB47V29Recommended

Token

BB47V29

  • Both are t47 external bottom bracket shells
BB47V386Recommended

Token

BB47V386

  • Both are t47 external bottom bracket shells
BB47VGXPRecommended

Token

BB47VGXP

  • Both are t47 external bottom bracket shells
Pro-Tech Bottom Bracket - T47x68Recommended

Campagnolo

Pro-Tech Bottom Bracket - T47x68

  • Both are t47 external bottom bracket shells
Pro-Tech Bottom Bracket - T47x86Recommended

Campagnolo

Pro-Tech Bottom Bracket - T47x86

  • Both are t47 external bottom bracket shells
QCK-Tech Bottom Bracket - T47x68Recommended

Campagnolo

QCK-Tech Bottom Bracket - T47x68

  • Both are t47 external bottom bracket shells
QCK-Tech Bottom Bracket - T47x86Recommended

Campagnolo

QCK-Tech Bottom Bracket - T47x86

  • Both are t47 external bottom bracket shells
T47 - I.B. SHIMANORecommended

Praxis

T47 - I.B. SHIMANO

  • Both are t47 external bottom bracket shells
T47 - SHIMANORecommended

Praxis

T47 - SHIMANO

  • Both are t47 external bottom bracket shells
T47 ABEC-3 BB for 24/22mm (SRAM) CranksRecommended

Wheels Manufacturing

T47 ABEC-3 BB for 24/22mm (SRAM) Cranks

  • Both are t47 external bottom bracket shells
T47 ABEC-3 BB for 24mm (Shimano) CranksRecommended

Wheels Manufacturing

T47 ABEC-3 BB for 24mm (Shimano) Cranks

  • Both are t47 external bottom bracket shells
T47 Angular Contact BB for 24/22mm (SRAM) CranksRecommended

Wheels Manufacturing

T47 Angular Contact BB for 24/22mm (SRAM) Cranks

  • Both are t47 external bottom bracket shells
T47 Angular Contact BB for 24mm (Shimano) CranksRecommended

Wheels Manufacturing

T47 Angular Contact BB for 24mm (Shimano) Cranks

  • Both are t47 external bottom bracket shells

Forks with a matching steerer and wheel size20

Allroad ForkRecommended

Deda Elementi

Allroad Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
BelvaRecommended

Formula

Belva

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber ZRecommended

Marzocchi

Bomber Z

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1Recommended

Marzocchi

Bomber Z1

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 CoilRecommended

Marzocchi

Bomber Z1 Coil

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 E-OptimizedRecommended

Marzocchi

Bomber Z1 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2Recommended

Marzocchi

Bomber Z2

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2 E-OptimizedRecommended

Marzocchi

Bomber Z2 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Cutthroat Carbon ForkRecommended

Salsa

Cutthroat Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Firestarter Carbon ForkRecommended

Salsa

Firestarter Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Recommended

Lauf

Grit

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Recommended

Lauf

Grit SL

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
JOSH BRYCELAND SELVARecommended

Formula

JOSH BRYCELAND SELVA

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
RC32 29Recommended

X-Fusion

RC32 29

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Road In-Route Fork 43mmRecommended

ENVE

Road In-Route Fork 43mm

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Road In-Route Fork 50mmRecommended

ENVE

Road In-Route Fork 50mm

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
SELVA CRecommended

Formula

SELVA C

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
SELVA RRecommended

Formula

SELVA R

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
SELVA SRecommended

Formula

SELVA S

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
SELVA VRecommended

Formula

SELVA V

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels

Frequently Asked Questions

What fits Cinelli Nemo TIG Road?

On this page we list brake calipers this frame mounts, bottom brackets for this frame shell, forks with a matching steerer and wheel size. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.

Can I mix Cinelli Nemo TIG Road with MTB components?

Cinelli Nemo TIG Road is recorded as a road component. Some standards do carry across (cassette spacing at a given speed count, for instance), but cable pull ratio and chainline frequently differ between road and MTB groups, so check the specific pairing rather than assuming it carries over.
