Ridley Omnium Fast

Frame

Omnium Fast

Specifications

Manufacturer
Ridley
Name
Omnium Fast
Discipline
Time Trial
Material
Carbon
Head Tube
Tapered
Upper S.H.I.S
IS42/28.6
Max Tyre Width (mm)
28
Wheel Sizes
700c / 29"
Frame Size
S, M, L
BB Standard
PF30

Included Components

  • fork
    Ridley Omnium Fast Fork
  • seatpost
    Ridley Omnium Fast Seatpost

Compatibility

Ridley Omnium Fast is a Ridley time trial frame. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Headsets for this head tube19

IS42/28.6 Upper CupShares a standard

Acros

IS42/28.6 Upper Cup

  • The upper cup is a IS42 fit
110 Ceramic IS42/28.6 / IS52/40Shares a standard

Cane Creek

110 Ceramic IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
110 IS42/28.6 / IS52/40Shares a standard

Cane Creek

110 IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
Classic Integrated IS Upper HeadsetShares a standard

Ritchey

Classic Integrated IS Upper Headset

  • The upper cup is a IS42 fit
Comp Integrated IS HeadsetShares a standard

Ritchey

Comp Integrated IS Headset

  • The upper cup is a IS42 fit
DropSet 2Shares a standard

Chris King

DropSet 2

  • The upper cup is a IS42 fit
DropSet 4Shares a standard

Chris King

DropSet 4

  • The upper cup is a IS42 fit
DropSet 5Shares a standard

Chris King

DropSet 5

  • The upper cup is a IS42 fit
Fifty IS42/28.6 / IS52/40Shares a standard

Cane Creek

Fifty IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
Forty IS42/28.6 / IS42/30Shares a standard

Cane Creek

Forty IS42/28.6 / IS42/30

  • The upper cup is a IS42 fit
Forty IS42/28.6 / IS52/40Shares a standard

Cane Creek

Forty IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
Hellbender 70 IS42/28.6 / IS52/40Shares a standard

Cane Creek

Hellbender 70 IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
Hellbender 70 Lite IS42/28.6 / IS47/33Shares a standard

Cane Creek

Hellbender 70 Lite IS42/28.6 / IS47/33

  • The upper cup is a IS42 fit
Hellbender 70 Lite IS42/28.6 / IS52/40Shares a standard

Cane Creek

Hellbender 70 Lite IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
Hellbender 70 Slam IS42/28.6 / IS52/40Shares a standard

Cane Creek

Hellbender 70 Slam IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
iRiX IS42/IS52Shares a standard

Industry Nine

iRiX IS42/IS52

  • The upper cup is a IS42 fit
MK0 IS Headset - Integrated Standard - IS42/28.6 UpperShares a standard

Wolf Tooth

MK0 IS Headset - Integrated Standard - IS42/28.6 Upper

  • The upper cup is a IS42 fit
Premium IS Headset - Integrated Standard - IS42/28.6 / IS52/40Shares a standard

Wolf Tooth

Premium IS Headset - Integrated Standard - IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
TK034Shares a standard

Token

TK034

  • The upper cup is a IS42 fit

Bottom brackets for this frame shell20

BB392 crank to BB30/PF30 frameMechanically compatible

FSA

BB392 crank to BB30/PF30 frame

  • Both are pf30 bottom bracket shells
BB4629Mechanically compatible

Token

BB4629

  • Both are pf30 bottom bracket shells
BB841T-46Mechanically compatible

Token

BB841T-46

  • Both are pf30 bottom bracket shells
Eccentric BB for PF30 & 24/22mm (SRAM, Truvativ) CranksMechanically compatible

Wheels Manufacturing

Eccentric BB for PF30 & 24/22mm (SRAM, Truvativ) Cranks

  • Both are pf30 bottom bracket shells
Eccentric BB for PF30 & 24mm (Shimano) CranksMechanically compatible

Wheels Manufacturing

Eccentric BB for PF30 & 24mm (Shimano) Cranks

  • Both are pf30 bottom bracket shells
M24 BB30/PF30 68MM ROADMechanically compatible

Praxis

M24 BB30/PF30 68MM ROAD

  • Both are pf30 bottom bracket shells
M24 BB30/PF30 73MM MTNMechanically compatible

Praxis

M24 BB30/PF30 73MM MTN

  • Both are pf30 bottom bracket shells
MegaExo and 24 (PF30)Mechanically compatible

FSA

MegaExo and 24 (PF30)

  • Both are pf30 bottom bracket shells
MegaExo crank to PF30 68mm frameMechanically compatible

FSA

MegaExo crank to PF30 68mm frame

  • Both are pf30 bottom bracket shells
MegaExo crank to PF30 73mm frameMechanically compatible

FSA

MegaExo crank to PF30 73mm frame

  • Both are pf30 bottom bracket shells
PF Saviour (PF30 / 24)Mechanically compatible

Token

PF Saviour (PF30 / 24)

  • Both are pf30 bottom bracket shells
PF Saviour (PF30 / 30)Mechanically compatible

Token

PF Saviour (PF30 / 30)

  • Both are pf30 bottom bracket shells
PF Saviour (PF30 / GXP)Mechanically compatible

Token

PF Saviour (PF30 / GXP)

  • Both are pf30 bottom bracket shells
PF30 Bottom Bracket for SRAM DUB RoadMechanically compatible

Cybrei

PF30 Bottom Bracket for SRAM DUB Road

  • Both are pf30 bottom bracket shells
PF30 Outboard ABEC-3 BB for 24/22mm Cranks (SRAM)Mechanically compatible

Wheels Manufacturing

PF30 Outboard ABEC-3 BB for 24/22mm Cranks (SRAM)

  • Both are pf30 bottom bracket shells

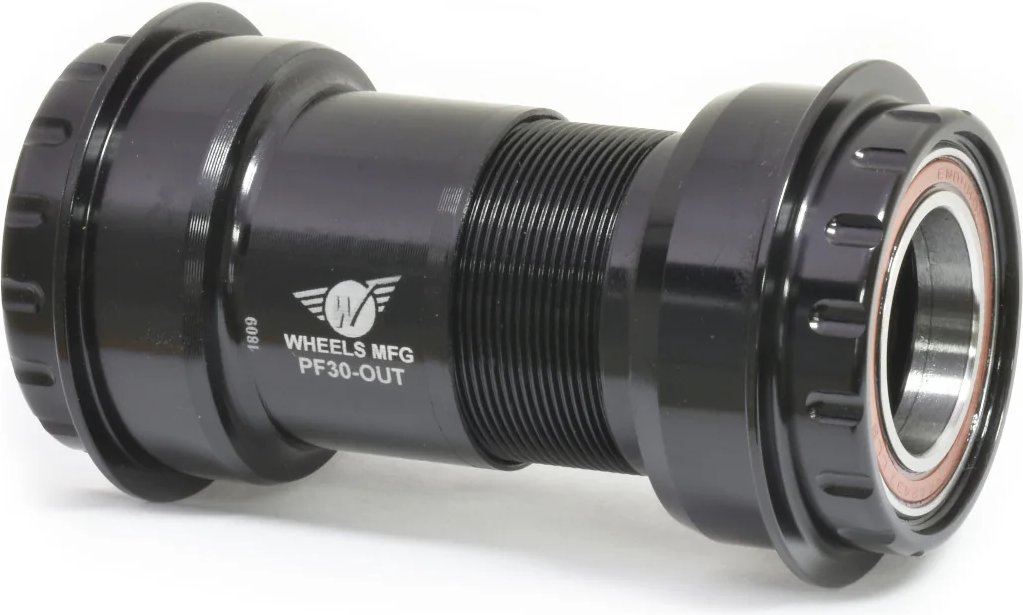

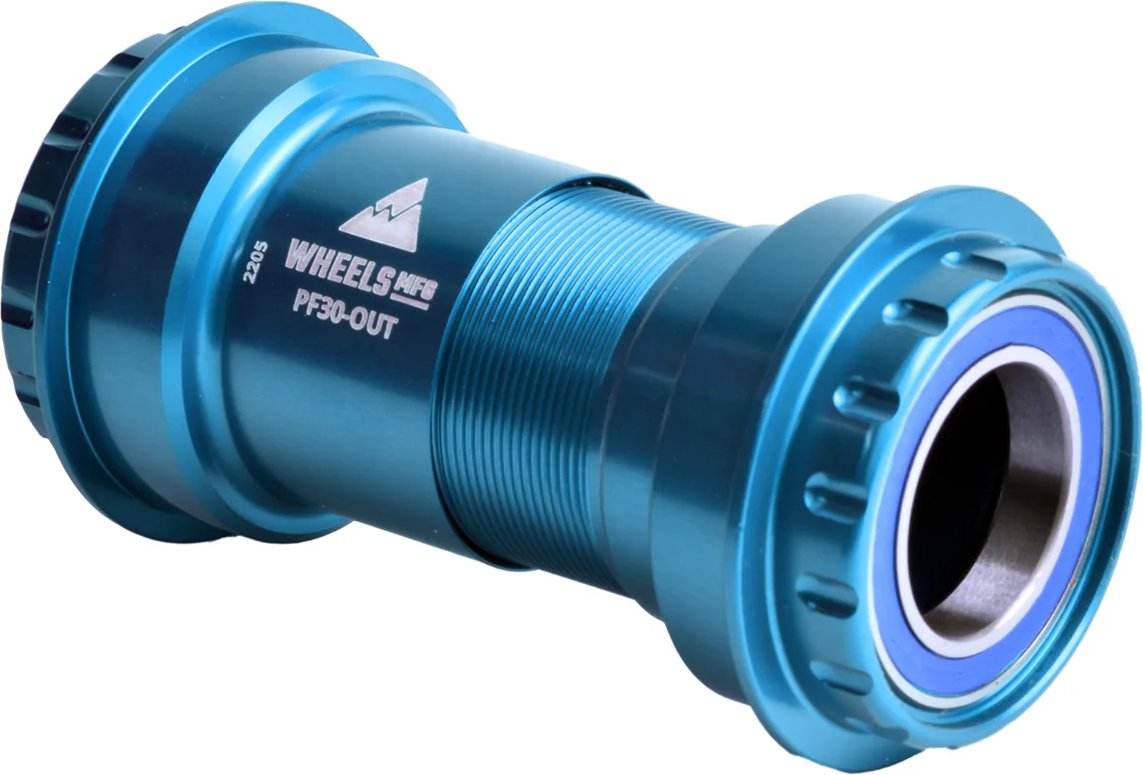

PF30 Outboard ABEC-3 BB for 24mm Cranks (Shimano) (PF30-OUT-1-5)Mechanically compatible

Wheels Manufacturing

PF30 Outboard ABEC-3 BB for 24mm Cranks (Shimano) (PF30-OUT-1-5)

  • Both are pf30 bottom bracket shells

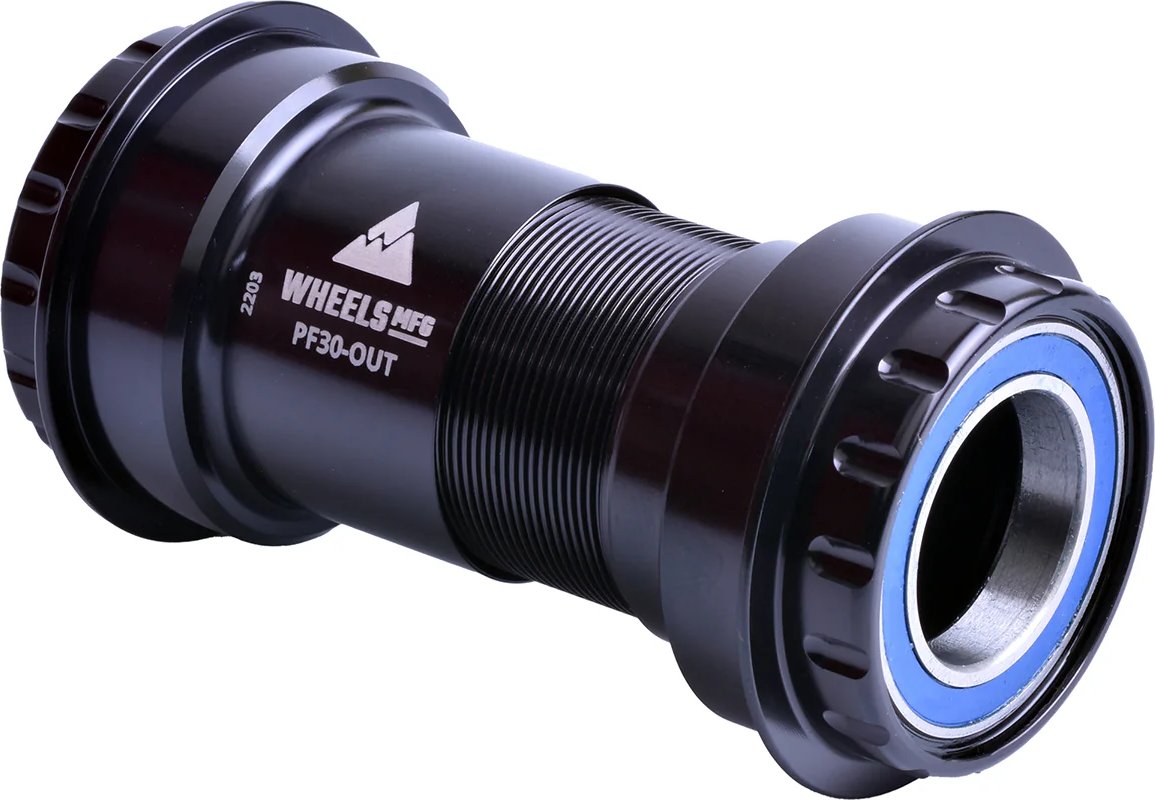

PF30 Outboard ABEC-3 BB for 24mm Cranks (Shimano) (PF30-OUT-1)Mechanically compatible

Wheels Manufacturing

PF30 Outboard ABEC-3 BB for 24mm Cranks (Shimano) (PF30-OUT-1)

  • Both are pf30 bottom bracket shells
PF30 Outboard ABEC-3 BB for 29mm SRAM DUB Compatible CranksMechanically compatible

Wheels Manufacturing

PF30 Outboard ABEC-3 BB for 29mm SRAM DUB Compatible Cranks

  • Both are pf30 bottom bracket shells
PF30 Outboard ABEC-3 BB for 30mm CranksMechanically compatible

Wheels Manufacturing

PF30 Outboard ABEC-3 BB for 30mm Cranks

  • Both are pf30 bottom bracket shells
PF30 Outboard ABEC-3 BB for M30 28/30mm Praxis - Compatible CranksMechanically compatible

Wheels Manufacturing

PF30 Outboard ABEC-3 BB for M30 28/30mm Praxis - Compatible Cranks

  • Both are pf30 bottom bracket shells

Forks with a matching steerer and wheel size20

29er Full Carbon Rigid Mtb Plus ForkMechanically compatible

LightCarbon

29er Full Carbon Rigid Mtb Plus Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake CX Fork Gravel Carbon ForkMechanically compatible

LightCarbon

700C Disc Brake CX Fork Gravel Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Aero Gravel Bike ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Aero Gravel Bike Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Racing Gravel ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Racing Gravel Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Allroad ForkMechanically compatible

Deda Elementi

Allroad Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
BelvaMechanically compatible

Formula

Belva

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber ZMechanically compatible

Marzocchi

Bomber Z

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1Mechanically compatible

Marzocchi

Bomber Z1

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 CoilMechanically compatible

Marzocchi

Bomber Z1 Coil

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 E-OptimizedMechanically compatible

Marzocchi

Bomber Z1 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2Mechanically compatible

Marzocchi

Bomber Z2

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2 E-OptimizedMechanically compatible

Marzocchi

Bomber Z2 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Cutthroat Carbon ForkMechanically compatible

Salsa

Cutthroat Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Firestarter Carbon ForkMechanically compatible

Salsa

Firestarter Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit SL

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
JOSH BRYCELAND SELVAMechanically compatible

Formula

JOSH BRYCELAND SELVA

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Pista LeggeraMechanically compatible

Columbus

Pista Leggera

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
RC32 29Mechanically compatible

X-Fusion

RC32 29

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Road In-Route Fork 43mmMechanically compatible

ENVE

Road In-Route Fork 43mm

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels

Frequently Asked Questions

What fits Ridley Omnium Fast?

On this page we list headsets for this head tube, bottom brackets for this frame shell, forks with a matching steerer and wheel size. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.
