Shimano SORA CRANKSET 2X9s

Crankset

SORA CRANKSET 2X9s

Specifications

Manufacturer
Shimano
Name
SORA CRANKSET 2X9s
Series
R3000
MPN
FC-R3000
Groupset
Sora
Rear Speeds
9
Front Speeds (chainrings)
2[1]
Drivetrain Brand
Shimano
Chainring Sizes
50, 34[2]
Crank Length (mm)
165, 170, 175
Spindle Interface
24mm
Chainring Mount
4-bolt Asymmetric 110bcd[2]
BCD
110
Chainline (mm)
43.5[2]
Compatible Chain Standards
Shimano HG (Hyperglide)[2]
Sources
  1. [1] AI-extracted, not yet checked against a named source (added 9 Feb 2026): Front Speeds (chainrings)
  2. [2] productinfo.shimano.com, checked 7 Aug 2026: Chainring Sizes, Chainring Mount, Chainline (mm), Compatible Chain Standards

Compatibility

Shimano SORA CRANKSET 2X9s is a Shimano crankset. It is a 9-speed component. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Sora R3000 Disc Groupset9

A groupset is designed and tested as one system, so these are the most reliable match. Other compatible parts are listed below.

SORA DUAL CONTROL LEVER 2X9sRecommended

Shimano

SORA DUAL CONTROL LEVER 2X9s

  • Ships in the Sora R3000 Disc Groupset
SORA DUAL CONTROL LEVER 9sRecommended

Shimano

SORA DUAL CONTROL LEVER 9s

  • Ships in the Sora R3000 Disc Groupset
SORA REAR DERAILLEUR MEDIUM CAGE 9sRecommended

Shimano

SORA REAR DERAILLEUR MEDIUM CAGE 9s

  • Ships in the Sora R3000 Disc Groupset
SORA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X9sRecommended

Shimano

SORA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X9s

  • Ships in the Sora R3000 Disc Groupset
HG CASSETTE 9sRecommended

Shimano

HG CASSETTE 9s

  • Ships in the Sora R3000 Disc Groupset
CN-HG93 ALFINE SUPER NARROW CHAIN 9sRecommended

Shimano

CN-HG93 ALFINE SUPER NARROW CHAIN 9s

  • Ships in the Sora R3000 Disc Groupset
MECHANICAL DISC BRAKE FRONT CALIPERRecommended

Shimano

MECHANICAL DISC BRAKE FRONT CALIPER

  • Ships in the Sora R3000 Disc Groupset
MECHANICAL DISC BRAKE REAR CALIPERRecommended

Shimano

MECHANICAL DISC BRAKE REAR CALIPER

  • Ships in the Sora R3000 Disc Groupset
CENTER LOCK DISC BRAKE ROTOR (SM-RT30)Recommended

Shimano

CENTER LOCK DISC BRAKE ROTOR (SM-RT30)

  • Ships in the Sora R3000 Disc Groupset

Chainrings that fit this crankset20

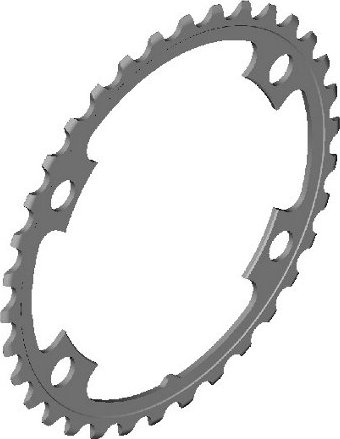

Chainring 34T for FC-R3000Recommended

Shimano

Chainring 34T for FC-R3000

  • Both use the 4-bolt asymmetric 110bcd interface

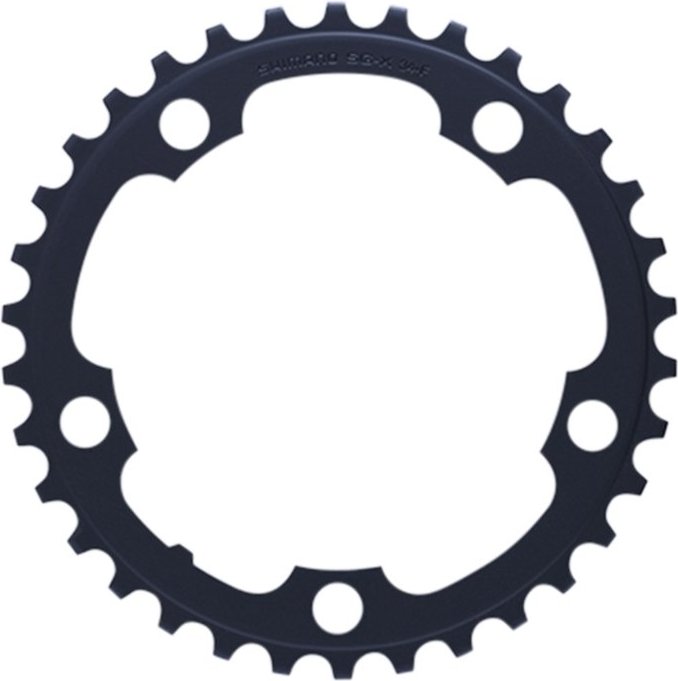

Chainring 34T for FC-R3000(with CG)Recommended

Shimano

Chainring 34T for FC-R3000(with CG)

  • Both use the 4-bolt asymmetric 110bcd interface

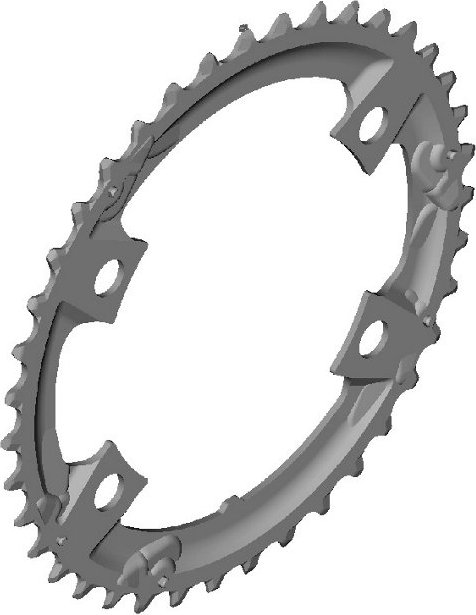

Chainring 39T for FC-R3030 (w/o CG)Recommended

Shimano

Chainring 39T for FC-R3030 (w/o CG)

  • Both use the 4-bolt asymmetric 110bcd interface

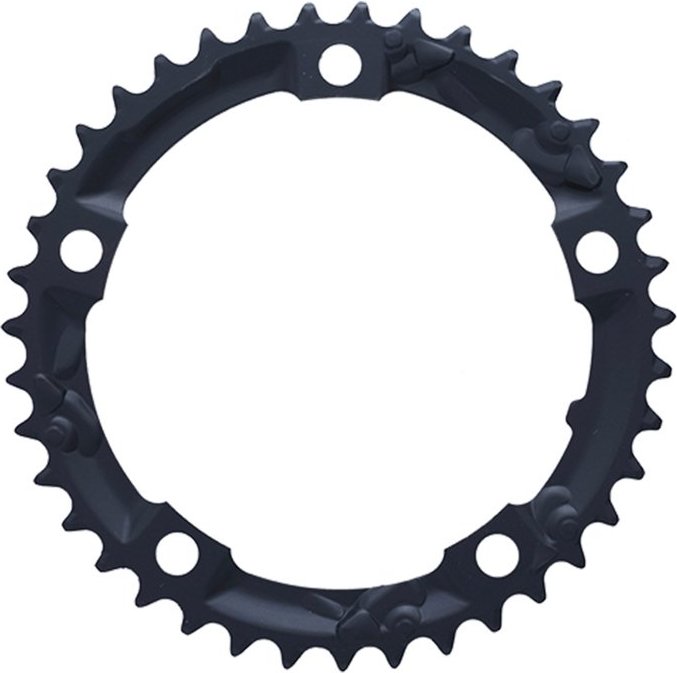

Chainring 39T for FC-R3030 (with CG)Recommended

Shimano

Chainring 39T for FC-R3030 (with CG)

  • Both use the 4-bolt asymmetric 110bcd interface

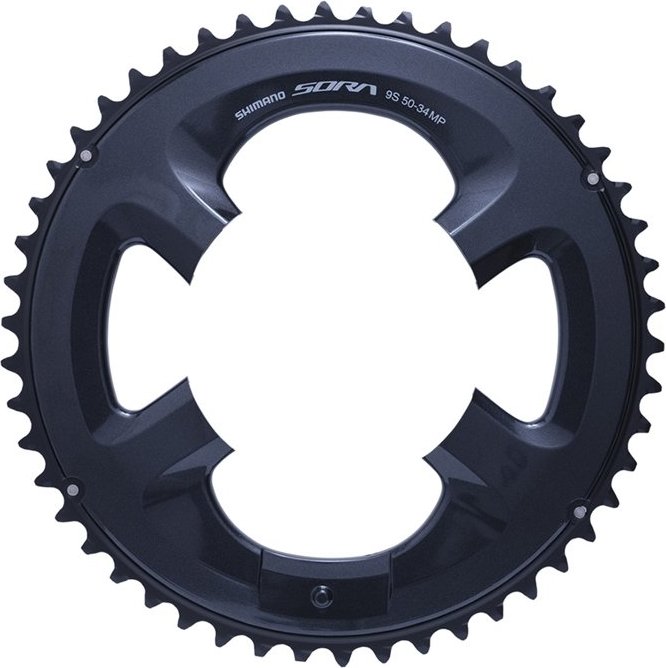

Chainring 50T for FC-R3000Recommended

Shimano

Chainring 50T for FC-R3000

  • Both use the 4-bolt asymmetric 110bcd interface

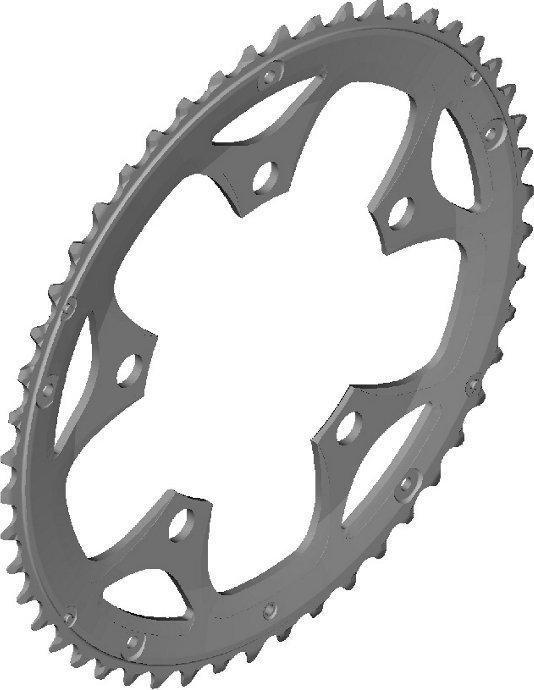

Chainring 50T for FC-R3000(with CG)Recommended

Shimano

Chainring 50T for FC-R3000(with CG)

  • Both use the 4-bolt asymmetric 110bcd interface

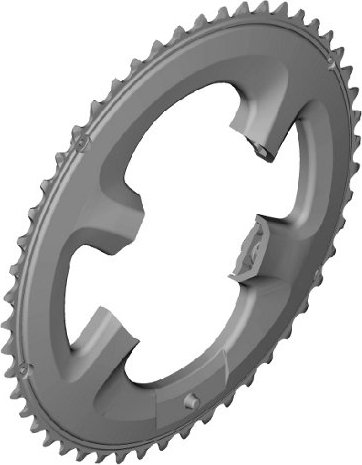

Chainring 50T for FC-R3030 (w/o CG)Recommended

Shimano

Chainring 50T for FC-R3030 (w/o CG)

  • Both use the 4-bolt asymmetric 110bcd interface

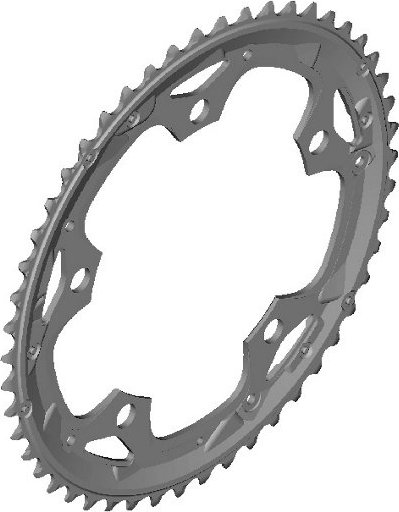

Chainring 50T for FC-R3030 (with CG)Recommended

Shimano

Chainring 50T for FC-R3030 (with CG)

  • Both use the 4-bolt asymmetric 110bcd interface
1x megatooth alloyMechanically compatible

FSA

1x megatooth alloy

  • Both are 110mm BCD
2x chainringMechanically compatible

FSA

2x chainring

  • Both are 110mm BCD
Chainring 30T for FC-U6000-2Mechanically compatible

Shimano

Chainring 30T for FC-U6000-2

  • Both use the 4-bolt asymmetric 110bcd interface
Chainring 32T for FC-U6010-2Mechanically compatible

Shimano

Chainring 32T for FC-U6010-2

  • Both use the 4-bolt asymmetric 110bcd interface
Chainring 34T for FC-4700Mechanically compatible

Shimano

Chainring 34T for FC-4700

  • Both use the 4-bolt asymmetric 110bcd interface
Chainring 34T for FC-R7000(Black)Mechanically compatible

Shimano

Chainring 34T for FC-R7000(Black)

  • Both use the 4-bolt asymmetric 110bcd interface
Chainring 34T for FC-R7000(Silver)Mechanically compatible

Shimano

Chainring 34T for FC-R7000(Silver)

  • Both use the 4-bolt asymmetric 110bcd interface
Chainring 34T for FC-R7100Mechanically compatible

Shimano

Chainring 34T for FC-R7100

  • Both use the 4-bolt asymmetric 110bcd interface
Chainring 34T for FC-R8000Mechanically compatible

Shimano

Chainring 34T for FC-R8000

  • Both use the 4-bolt asymmetric 110bcd interface
Chainring 34T for FC-RS510Mechanically compatible

Shimano

Chainring 34T for FC-RS510

  • Both use the 4-bolt asymmetric 110bcd interface
Chainring 34T for FC-RS520Mechanically compatible

Shimano

Chainring 34T for FC-RS520

  • Both use the 4-bolt asymmetric 110bcd interface
Chainring 36T for FC-4700Mechanically compatible

Shimano

Chainring 36T for FC-4700

  • Both use the 4-bolt asymmetric 110bcd interface

Front derailleurs for this crankset20

SORA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X9sRecommended

Shimano

SORA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X9s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
SORA FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X9sRecommended

Shimano

SORA FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X9s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
105 Di2 FRONT DERAILLEUR 2X12sMechanically compatible

Shimano

105 Di2 FRONT DERAILLEUR 2X12s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
105 FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X11sMechanically compatible

Shimano

105 FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X11s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
105 FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X12sMechanically compatible

Shimano

105 FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X12s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
105 FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X11sMechanically compatible

Shimano

105 FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X11s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
105 FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X12sMechanically compatible

Shimano

105 FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X12s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
CLARIS FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X8sMechanically compatible

Shimano

CLARIS FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X8s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
CLARIS FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X8sMechanically compatible

Shimano

CLARIS FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X8s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
DURA-ACE Di2 FRONT DERAILLEUR 2X11sMechanically compatible

Shimano

DURA-ACE Di2 FRONT DERAILLEUR 2X11s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
DURA-ACE Di2 FRONT DERAILLEUR 2X12sMechanically compatible

Shimano

DURA-ACE Di2 FRONT DERAILLEUR 2X12s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
DURA-ACE FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X11sMechanically compatible

Shimano

DURA-ACE FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X11s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
DURA-ACE FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X11sMechanically compatible

Shimano

DURA-ACE FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X11s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
TIAGRA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X10sMechanically compatible

Shimano

TIAGRA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X10s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
TIAGRA FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X10sMechanically compatible

Shimano

TIAGRA FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X10s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
TOURNEY A070 FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X7sMechanically compatible

Shimano

TOURNEY A070 FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X7s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
ULTEGRA Di2 FRONT DERAILLEUR 2X11sMechanically compatible

Shimano

ULTEGRA Di2 FRONT DERAILLEUR 2X11s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
ULTEGRA Di2 FRONT DERAILLEUR 2X12sMechanically compatible

Shimano

ULTEGRA Di2 FRONT DERAILLEUR 2X12s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
ULTEGRA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X11sMechanically compatible

Shimano

ULTEGRA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X11s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts
ULTEGRA FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X11sMechanically compatible

Shimano

ULTEGRA FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X11s

  • Both are set up for 2x
  • Both are Shimano drivetrain parts

Bottom brackets for this crankset20

386EVO ABEC-3 BB for 24mm (Shimano) CranksMechanically compatible

Wheels Manufacturing

386EVO ABEC-3 BB for 24mm (Shimano) Cranks

  • Both use a 24mm spindle
386EVO Angular Contact BB for 24mm (Shimano) CranksMechanically compatible

Wheels Manufacturing

386EVO Angular Contact BB for 24mm (Shimano) Cranks

  • Both use a 24mm spindle
878Mechanically compatible

Token

878

  • Both use a 24mm spindle
BB30 Outboard ABEC-3 BB for 24mm Cranks (Shimano)Mechanically compatible

Wheels Manufacturing

BB30 Outboard ABEC-3 BB for 24mm Cranks (Shimano)

  • Both use a 24mm spindle
BB30 Outboard Angular Contact BB for 24mm Cranks (Shimano)Mechanically compatible

Wheels Manufacturing

BB30 Outboard Angular Contact BB for 24mm Cranks (Shimano)

  • Both use a 24mm spindle
BB30 Outboard Ceramic Hybrid BB for 24mm Cranks (Shimano)Mechanically compatible

Wheels Manufacturing

BB30 Outboard Ceramic Hybrid BB for 24mm Cranks (Shimano)

  • Both use a 24mm spindle
BB30 Outboard ZERØ Ceramic BB for 24mm Cranks (Shimano)Mechanically compatible

Wheels Manufacturing

BB30 Outboard ZERØ Ceramic BB for 24mm Cranks (Shimano)

  • Both use a 24mm spindle
BB30ARMechanically compatible

Token

BB30AR

  • Both use a 24mm spindle
BB3724Mechanically compatible

Token

BB3724

  • Both use a 24mm spindle
BB38624PSMechanically compatible

Token

BB38624PS

  • Both use a 24mm spindle
BB386PSMechanically compatible

Token

BB386PS

  • Both use a 24mm spindle
BB4124PSMechanically compatible

Token

BB4124PS

  • Both use a 24mm spindle
BB46BR24Mechanically compatible

Token

BB46BR24

  • Both use a 24mm spindle
BB47R24Mechanically compatible

Token

BB47R24

  • Both use a 24mm spindle
BB47V24Mechanically compatible

Token

BB47V24

  • Both use a 24mm spindle
BB841PSMechanically compatible

Token

BB841PS

  • Both use a 24mm spindle
BB841T-41Mechanically compatible

Token

BB841T-41

  • Both use a 24mm spindle
BB841T-42Mechanically compatible

Token

BB841T-42

  • Both use a 24mm spindle
BB841T-46Mechanically compatible

Token

BB841T-46

  • Both use a 24mm spindle
BB86 Bottom Bracket (Shimano 24mm)Mechanically compatible

Cybrei

BB86 Bottom Bracket (Shimano 24mm)

  • Both use a 24mm spindle

Frequently Asked Questions

What fits Shimano SORA CRANKSET 2X9s?

On this page we list chainrings that fit this crankset, front derailleurs for this crankset, bottom brackets for this crankset, chains for this crankset. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.

Can I use a higher or lower speed chain with Shimano SORA CRANKSET 2X9s?

No. Shimano SORA CRANKSET 2X9s is a 9-speed component and needs a 9-speed chain. Chains for different speed counts have different external widths and inner-plate profiles, which causes poor shifting or interference with the neighbouring sprockets.
