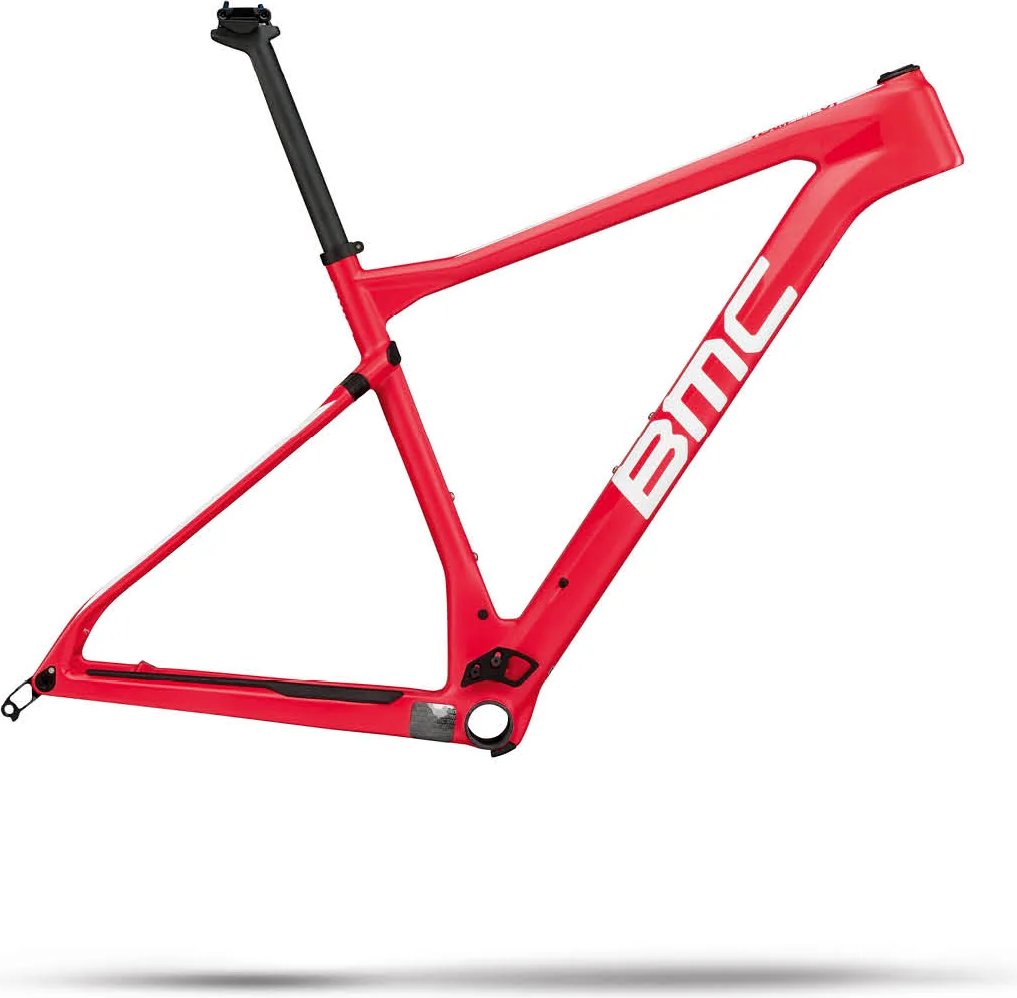

BMC Teamelite 01

Frame

Teamelite 01

Specifications

Manufacturer
BMC
Name
Teamelite 01
Discipline
Mountain
Material
Carbon
Upper S.H.I.S
IS42/28.6
Lower S.H.I.S
IS52/40
Seatpost Diameter (mm)
27.2[1]
Wheel Sizes
700c / 29"
Frame Size
XS, S, M, L, XL
Rear Derailleur Mount
Standard Hanger
BB Standard
BB92 PRESSFIT[2]
Disc Brake Mount
Post Mount[3]
Di2 Compatible
Yes
Sources
  1. [1] bikeradar.com, checked 23 Aug 2026: Seatpost Diameter (mm)
  2. [2] vitalmtb.com, checked 23 Aug 2026: BB Standard
  3. [3] bikeradar.com, checked 17 Aug 2026: Disc Brake Mount

Included Components

  • fork
    BMC Teamelite 01 Fork
  • headset
    BMC Teamelite 01 Headset
  • seatpost
    BMC Teamelite 01 Seatpost

Compatibility

BMC Teamelite 01 is a BMC mtb frame. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Brake calipers this frame mounts20

2-PISTON BRAKE CALIPER (BR-MT200)Mechanically compatible

Shimano

2-PISTON BRAKE CALIPER (BR-MT200)

  • Both use a post mount disc brake
2-PISTON BRAKE CALIPER (BR-MT500)Mechanically compatible

Shimano

2-PISTON BRAKE CALIPER (BR-MT500)

  • Both use a post mount disc brake
4-PISTON BRAKE CALIPERMechanically compatible

Shimano

4-PISTON BRAKE CALIPER

  • Both use a post mount disc brake
4-PISTON BRAKE CALIPER (BR-MT420)Mechanically compatible

Shimano

4-PISTON BRAKE CALIPER (BR-MT420)

  • Both use a post mount disc brake
4-PISTON BRAKE CALIPER (BR-MT520)Mechanically compatible

Shimano

4-PISTON BRAKE CALIPER (BR-MT520)

  • Both use a post mount disc brake
AFTERBURNER MTBMechanically compatible

FSA

AFTERBURNER MTB

  • Both use a post mount disc brake
Brake Caliper (BR-M00B-160F)Mechanically compatible

LTWOO

Brake Caliper (BR-M00B-160F)

  • Both use a post mount disc brake
Brake Caliper (BR-M00B-160R)Mechanically compatible

LTWOO

Brake Caliper (BR-M00B-160R)

  • Both use a post mount disc brake
Brake Caliper (BR-M01B-160F)Mechanically compatible

LTWOO

Brake Caliper (BR-M01B-160F)

  • Both use a post mount disc brake
Brake Caliper (BR-M01B-160R)Mechanically compatible

LTWOO

Brake Caliper (BR-M01B-160R)

  • Both use a post mount disc brake
DEORE 2-PISTON BRAKE CALIPER (BR-MT410)Mechanically compatible

Shimano

DEORE 2-PISTON BRAKE CALIPER (BR-MT410)

  • Both use a post mount disc brake
EVO GR4Mechanically compatible

Hope

EVO GR4

  • Both use a post mount disc brake
EVO TR4Mechanically compatible

Hope

EVO TR4

  • Both use a post mount disc brake
Evo X2Mechanically compatible

Hope

Evo X2

  • Both use a post mount disc brake
MA3000 Hydraulic Brake Caliper Set (MTB)Mechanically compatible

WheelTop

MA3000 Hydraulic Brake Caliper Set (MTB)

  • Both use a post mount disc brake
RX4+SL PMMechanically compatible

Hope

RX4+SL PM

  • Both use a post mount disc brake
Tech 3 DuoMechanically compatible

Hope

Tech 3 Duo

  • Both use a post mount disc brake
Tech 4 V4Mechanically compatible

Hope

Tech 4 V4

  • Both use a post mount disc brake
XCR Pro E4Mechanically compatible

Hope

XCR Pro E4

  • Both use a post mount disc brake
XCR Pro X2Mechanically compatible

Hope

XCR Pro X2

  • Both use a post mount disc brake

Bottom brackets for this frame shell8

BB392 crank to press fit BB89.5/92mm frameMechanically compatible

FSA

BB392 crank to press fit BB89.5/92mm frame

  • Both are bb92 pressfit bottom bracket shells
DEORE XT PRESS-FIT BOTTOM BRACKET 89.5/92 MM SHELL WIDTHMechanically compatible

Shimano

DEORE XT PRESS-FIT BOTTOM BRACKET 89.5/92 MM SHELL WIDTH

  • Both are bb92 pressfit bottom bracket shells
MegaExo MTB crank to press fit BB92 frame (24mm)Mechanically compatible

FSA

MegaExo MTB crank to press fit BB92 frame (24mm)

  • Both are bb92 pressfit bottom bracket shells
MegaExo MTB crank to press fit BB92 frame with ceramic bearingsMechanically compatible

FSA

MegaExo MTB crank to press fit BB92 frame with ceramic bearings

  • Both are bb92 pressfit bottom bracket shells
PRESS-FIT BOTTOM BRACKET 89.5/92 MMMechanically compatible

Shimano

PRESS-FIT BOTTOM BRACKET 89.5/92 MM

  • Both are bb92 pressfit bottom bracket shells
SAINT PRESS-FIT BOTTOM BRACKET 104.5/107 MM SHELL WIDTHMechanically compatible

Shimano

SAINT PRESS-FIT BOTTOM BRACKET 104.5/107 MM SHELL WIDTH

  • Both are bb92 pressfit bottom bracket shells
SAINT PRESS-FIT BOTTOM BRACKET 89.5/92 MM SHELL WIDTHMechanically compatible

Shimano

SAINT PRESS-FIT BOTTOM BRACKET 89.5/92 MM SHELL WIDTH

  • Both are bb92 pressfit bottom bracket shells
XTR PRESS-FIT BOTTOM BRACKET 89.5/92 MM SHELL WIDTHMechanically compatible

Shimano

XTR PRESS-FIT BOTTOM BRACKET 89.5/92 MM SHELL WIDTH

  • Both are bb92 pressfit bottom bracket shells

Seatposts for this seat tube20

AFTERBURNER seatpostMechanically compatible

FSA

AFTERBURNER seatpost

  • Both are 27.2mm
Classic 2-Bolt SeatpostMechanically compatible

Ritchey

Classic 2-Bolt Seatpost

  • Both are 27.2mm
Classic Zero SeatpostMechanically compatible

Ritchey

Classic Zero Seatpost

  • Both are 27.2mm
Coast Suspension Dropper PostMechanically compatible

PNW Components

Coast Suspension Dropper Post

  • Both are 27.2mm
Comp 2-Bolt SeatpostMechanically compatible

Ritchey

Comp 2-Bolt Seatpost

  • Both are 27.2mm
Comp Carbon 2-Bolt SeatpostMechanically compatible

Ritchey

Comp Carbon 2-Bolt Seatpost

  • Both are 27.2mm
Comp Carbon Zero SeatpostMechanically compatible

Ritchey

Comp Carbon Zero Seatpost

  • Both are 27.2mm
Comp Trail Zero SeatpostMechanically compatible

Ritchey

Comp Trail Zero Seatpost

  • Both are 27.2mm
Comp Zero SeatpostMechanically compatible

Ritchey

Comp Zero Seatpost

  • Both are 27.2mm
Cross 25mm SeatpostMechanically compatible

Deda Elementi

Cross 25mm Seatpost

  • Both are 27.2mm
Discover Carbon SeatpostMechanically compatible

PRO

Discover Carbon Seatpost

  • Both are 27.2mm
Discover SeatpostMechanically compatible

PRO

Discover Seatpost

  • Both are 27.2mm
Duncan 2.0 Seatpost 15mm OffsetMechanically compatible

Syncros

Duncan 2.0 Seatpost 15mm Offset

  • Both are 27.2mm
Duncan SL Seatpost 10mm OffsetMechanically compatible

Syncros

Duncan SL Seatpost 10mm Offset

  • Both are 27.2mm
Duncan SL Seatpost 25mm OffsetMechanically compatible

Syncros

Duncan SL Seatpost 25mm Offset

  • Both are 27.2mm
E20 iMechanically compatible

KS

E20 i

  • Both are 27.2mm
EA50 SeatpostMechanically compatible

Easton

EA50 Seatpost

  • Both are 27.2mm
EA70 Seatpost (20mm Setback)Mechanically compatible

Easton

EA70 Seatpost (20mm Setback)

  • Both are 27.2mm
EA70 Seatpost (Zero Setback)Mechanically compatible

Easton

EA70 Seatpost (Zero Setback)

  • Both are 27.2mm
EA90 ISA Seatpost (20mm Setback)Mechanically compatible

Easton

EA90 ISA Seatpost (20mm Setback)

  • Both are 27.2mm

Headsets for this head tube20

110 Ceramic IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

110 Ceramic IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
110 IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

110 IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
DropSet 2Mechanically compatible

Chris King

DropSet 2

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
DropSet 5Mechanically compatible

Chris King

DropSet 5

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Fifty IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Fifty IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Forty IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Forty IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Hellbender 70 IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Hellbender 70 IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Hellbender 70 Lite IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Hellbender 70 Lite IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Hellbender 70 Slam IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Hellbender 70 Slam IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
iRiX IS42/IS52Mechanically compatible

Industry Nine

iRiX IS42/IS52

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Premium IS Headset - Integrated Standard - IS42/28.6 / IS52/40Mechanically compatible

Wolf Tooth

Premium IS Headset - Integrated Standard - IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
IS42/28.6 Upper CupShares a standard

Acros

IS42/28.6 Upper Cup

  • The upper cup is a IS42 fit
IS52 Lower CupShares a standard

Acros

IS52 Lower Cup

  • The lower cup is a IS52 fit
IS52/30 Lower CupShares a standard

Acros

IS52/30 Lower Cup

  • The lower cup is a IS52 fit
IS52/40 Lower CupShares a standard

Acros

IS52/40 Lower Cup

  • The lower cup is a IS52 fit
Classic Integrated IS Upper HeadsetShares a standard

Ritchey

Classic Integrated IS Upper Headset

  • The upper cup is a IS42 fit
Comp Integrated IS Lower HeadsetShares a standard

Ritchey

Comp Integrated IS Lower Headset

  • The lower cup is a IS52 fit
MK0 IS Headset - Integrated Standard - IS42/28.6 UpperShares a standard

Wolf Tooth

MK0 IS Headset - Integrated Standard - IS42/28.6 Upper

  • The upper cup is a IS42 fit
Premium IS52 Aero Headset for Semi-Internal RoutingShares a standard

Wolf Tooth

Premium IS52 Aero Headset for Semi-Internal Routing

  • The lower cup is a IS52 fit
Premium IS52 Internal Aero Headset for ENVE IN-Route SystemShares a standard

Wolf Tooth

Premium IS52 Internal Aero Headset for ENVE IN-Route System

  • The lower cup is a IS52 fit

Forks with a matching steerer and wheel size20

29er Full Carbon Rigid Mtb Plus ForkMechanically compatible

LightCarbon

29er Full Carbon Rigid Mtb Plus Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake CX Fork Gravel Carbon ForkMechanically compatible

LightCarbon

700C Disc Brake CX Fork Gravel Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Aero Gravel Bike ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Aero Gravel Bike Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Racing Gravel ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Racing Gravel Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Allroad ForkMechanically compatible

Deda Elementi

Allroad Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
BelvaMechanically compatible

Formula

Belva

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber ZMechanically compatible

Marzocchi

Bomber Z

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1Mechanically compatible

Marzocchi

Bomber Z1

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 CoilMechanically compatible

Marzocchi

Bomber Z1 Coil

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 E-OptimizedMechanically compatible

Marzocchi

Bomber Z1 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2Mechanically compatible

Marzocchi

Bomber Z2

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2 E-OptimizedMechanically compatible

Marzocchi

Bomber Z2 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Cutthroat Carbon ForkMechanically compatible

Salsa

Cutthroat Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Firestarter Carbon ForkMechanically compatible

Salsa

Firestarter Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit SL

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
JOSH BRYCELAND SELVAMechanically compatible

Formula

JOSH BRYCELAND SELVA

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Pista LeggeraMechanically compatible

Columbus

Pista Leggera

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
RC32 29Mechanically compatible

X-Fusion

RC32 29

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Road In-Route Fork 43mmMechanically compatible

ENVE

Road In-Route Fork 43mm

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels

Frequently Asked Questions

What fits BMC Teamelite 01?

On this page we list brake calipers this frame mounts, bottom brackets for this frame shell, seatposts for this seat tube, headsets for this head tube, forks with a matching steerer and wheel size. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.

Can I mix BMC Teamelite 01 with road components?

BMC Teamelite 01 is recorded as a mtb component. Some standards do carry across (cassette spacing at a given speed count, for instance), but cable pull ratio and chainline frequently differ between mtb and road groups, so check the specific pairing rather than assuming it carries over.
