Shimano TIAGRA CRANKSET 3X10s

Crankset

Specifications

Manufacturer: Shimano
Name: TIAGRA CRANKSET 3X10s
Series: 4700
MPN: FC-4703
Groupset: Tiagra
Rear Speeds: 10
Front Speeds (chainrings): 3^[1]
Drivetrain Brand: Shimano
Chainring Sizes: 50, 39, 30^[2]
Crank Length (mm): 165, 170, 172.5, 175
Spindle Interface: 24mm
BCD: 110/74
Chainline (mm): 45^[2]
Compatible Chain Standards: Shimano HG (Hyperglide)^[2]
Sources: [1] AI-extracted, not yet checked against a named source (added 9 Feb 2026): Front Speeds (chainrings)
[2] productinfo.shimano.com, checked 7 Aug 2026: Chainring Sizes, Chainline (mm), Compatible Chain Standards

Compatibility

Shimano TIAGRA CRANKSET 3X10s is a Shimano crankset. It is a 10-speed component. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Chainrings that fit this crankset20

Recommended

Shimano

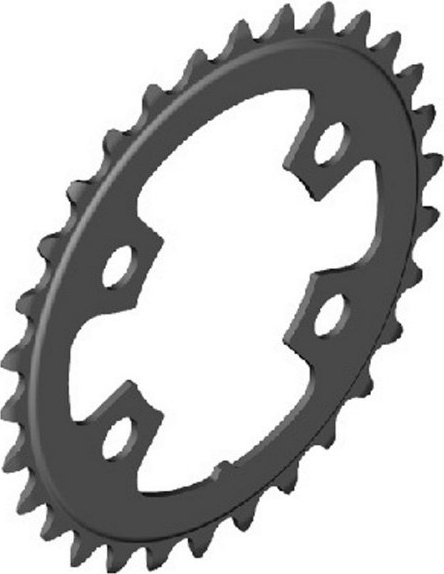

Chainring 30T for FC-4703

Both are 74mm BCD

Recommended

Shimano

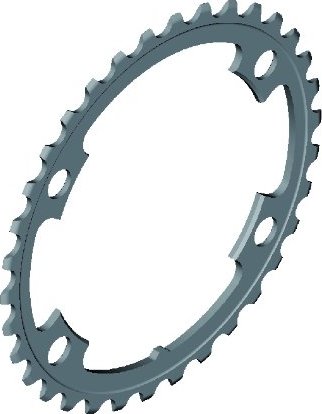

Chainring 34T for FC-4700

Both are 110mm BCD

Recommended

Shimano

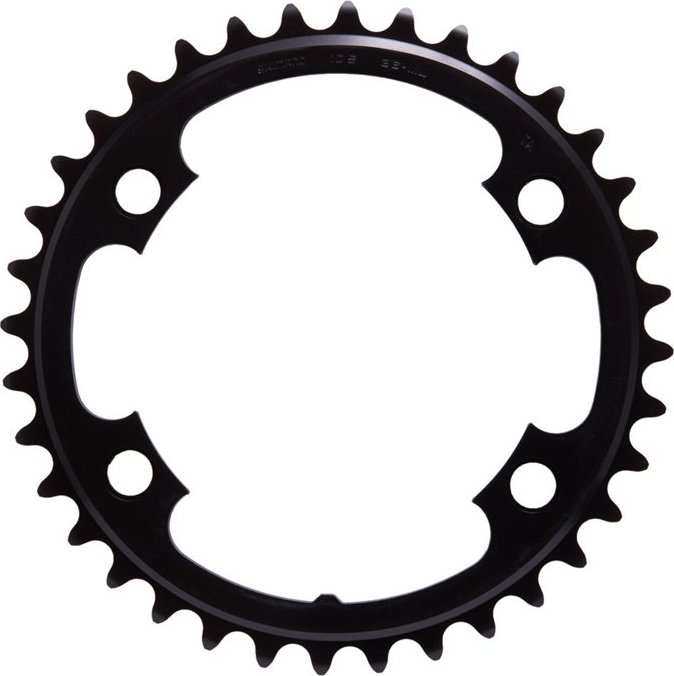

Chainring 36T for FC-4700

Both are 110mm BCD

Recommended

Shimano

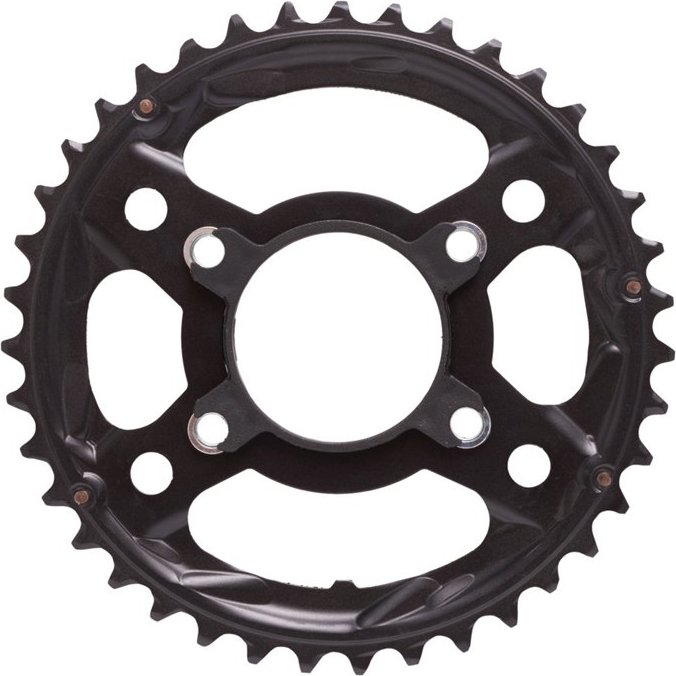

Chainring 39T for FC-4703

Both are 110mm BCD

Recommended

Shimano

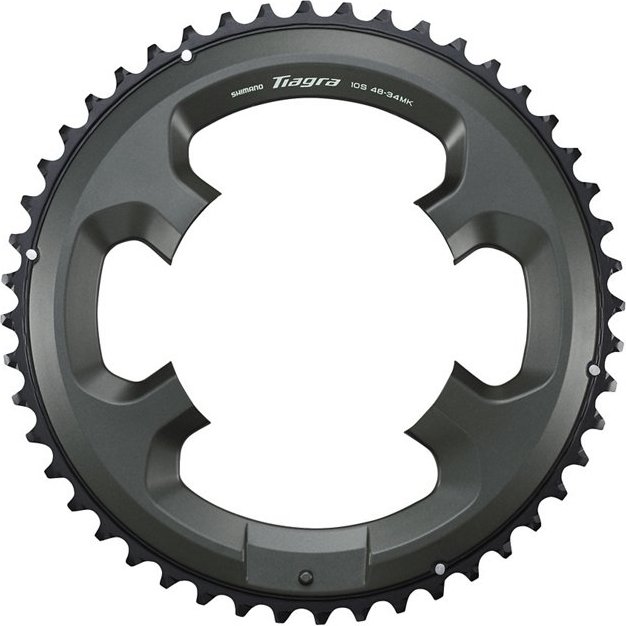

Chainring 48T for FC-4700

Both are 110mm BCD

Recommended

Shimano

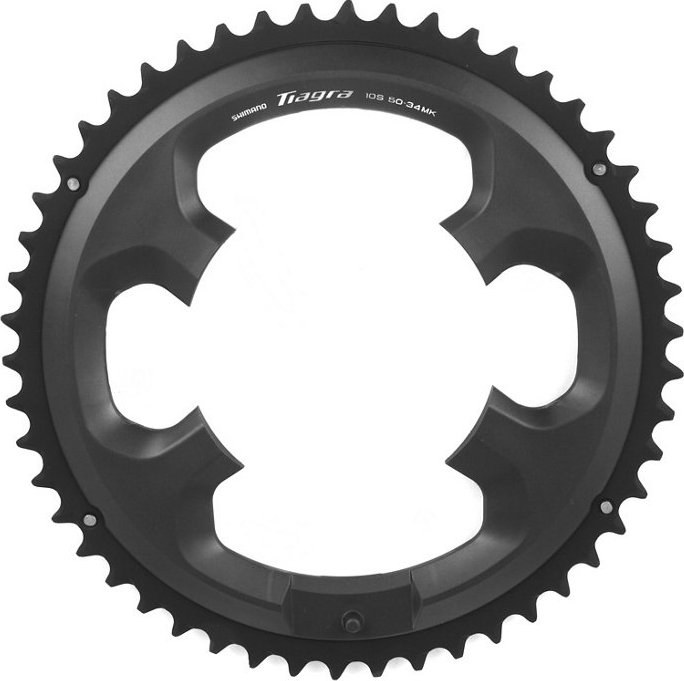

Chainring 50T for FC-4700

Both are 110mm BCD

Recommended

Shimano

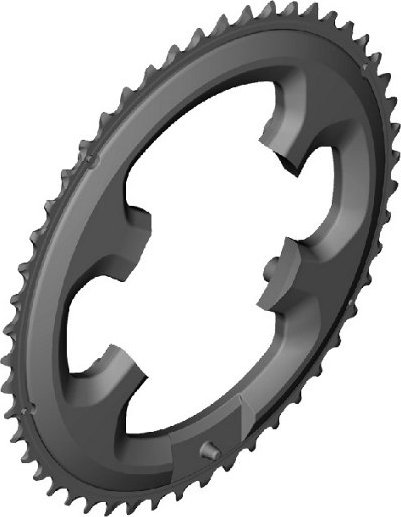

Chainring 50T for FC-4703

Both are 110mm BCD

Recommended

Shimano

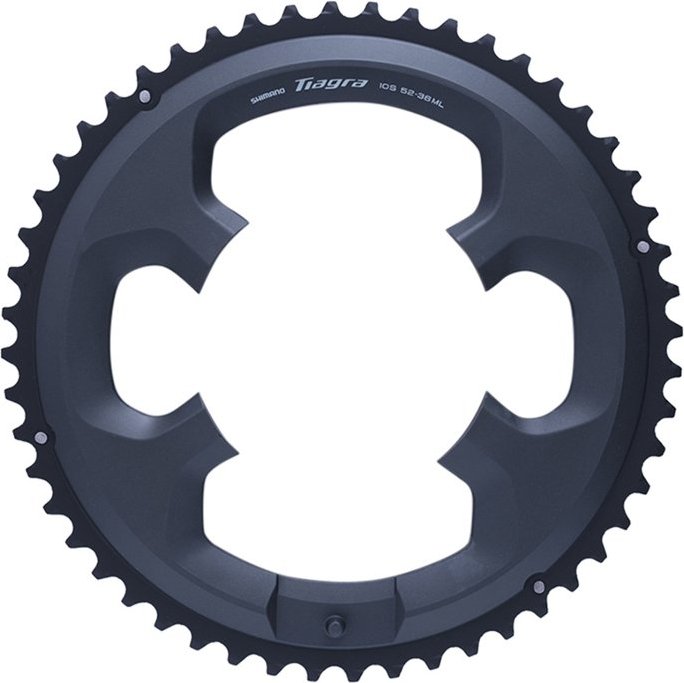

Chainring 52T for FC-4700

Both are 110mm BCD

Mechanically compatible

FSA

1x megatooth alloy

Both are 110mm BCD

Mechanically compatible

FSA

2x chainring

Both are 110mm BCD

Mechanically compatible

Shimano

Chainring 30T for FC-R3030 (w/o CG)

Both are 74mm BCD

Mechanically compatible

Shimano

Chainring 30T for FC-R3030 (with CG)

Both are 74mm BCD

Mechanically compatible

Shimano

Chainring 30T for FC-U6000-2

Both are 110mm BCD

Mechanically compatible

Shimano

Chainring 32T for FC-U6010-2

Both are 110mm BCD

Mechanically compatible

Shimano

Chainring 34T for FC-R3000

Both are 110mm BCD

Mechanically compatible

Shimano

Chainring 34T for FC-R3000(with CG)

Both are 110mm BCD

Mechanically compatible

Shimano

Chainring 34T for FC-R7000(Black)

Both are 110mm BCD

Mechanically compatible

Shimano

Chainring 34T for FC-R7000(Silver)

Both are 110mm BCD

Mechanically compatible

Shimano

Chainring 34T for FC-R7100

Both are 110mm BCD

Mechanically compatible

Shimano

Chainring 34T for FC-R8000

Both are 110mm BCD

Front derailleurs for this crankset6

TIAGRA FRONT DERAILLEUR (BRAZED-ON MOUNT) 3X10s

Recommended

Shimano

TIAGRA FRONT DERAILLEUR (BRAZED-ON MOUNT) 3X10s

Both are set up for 3x
Both are Shimano drivetrain parts

TIAGRA FRONT DERAILLEUR (CLAMP BAND MOUNT) 3X10s

Recommended

Shimano

TIAGRA FRONT DERAILLEUR (CLAMP BAND MOUNT) 3X10s

Both are set up for 3x
Both are Shimano drivetrain parts

CLARIS FRONT DERAILLEUR (BRAZED-ON MOUNT) 3X8s

Mechanically compatible

Shimano

CLARIS FRONT DERAILLEUR (BRAZED-ON MOUNT) 3X8s

Both are set up for 3x
Both are Shimano drivetrain parts

CLARIS FRONT DERAILLEUR (CLAMP BAND MOUNT) 3X8s

Mechanically compatible

Shimano

CLARIS FRONT DERAILLEUR (CLAMP BAND MOUNT) 3X8s

Both are set up for 3x
Both are Shimano drivetrain parts

SORA FRONT DERAILLEUR (BRAZED-ON MOUNT) 3X9s

Mechanically compatible

Shimano

SORA FRONT DERAILLEUR (BRAZED-ON MOUNT) 3X9s

Both are set up for 3x
Both are Shimano drivetrain parts

SORA FRONT DERAILLEUR (CLAMP BAND MOUNT) 3X9s

Mechanically compatible

Shimano

SORA FRONT DERAILLEUR (CLAMP BAND MOUNT) 3X9s

Both are set up for 3x
Both are Shimano drivetrain parts

Bottom brackets for this crankset20

386EVO ABEC-3 BB for 24mm (Shimano) Cranks

Mechanically compatible

Wheels Manufacturing

386EVO ABEC-3 BB for 24mm (Shimano) Cranks

Both use a 24mm spindle

386EVO Angular Contact BB for 24mm (Shimano) Cranks

Mechanically compatible

Wheels Manufacturing

386EVO Angular Contact BB for 24mm (Shimano) Cranks

Both use a 24mm spindle

Mechanically compatible

Token

878

Both use a 24mm spindle

BB30 Outboard ABEC-3 BB for 24mm Cranks (Shimano)

Mechanically compatible

Wheels Manufacturing

BB30 Outboard ABEC-3 BB for 24mm Cranks (Shimano)

Both use a 24mm spindle

BB30 Outboard Angular Contact BB for 24mm Cranks (Shimano)

Mechanically compatible

Wheels Manufacturing

BB30 Outboard Angular Contact BB for 24mm Cranks (Shimano)

Both use a 24mm spindle

BB30 Outboard Ceramic Hybrid BB for 24mm Cranks (Shimano)

Mechanically compatible

Wheels Manufacturing

BB30 Outboard Ceramic Hybrid BB for 24mm Cranks (Shimano)

Both use a 24mm spindle

BB30 Outboard ZERØ Ceramic BB for 24mm Cranks (Shimano)

Mechanically compatible

Wheels Manufacturing

BB30 Outboard ZERØ Ceramic BB for 24mm Cranks (Shimano)

Both use a 24mm spindle

Mechanically compatible

Token

BB30AR

Both use a 24mm spindle

Mechanically compatible

Token

BB3724

Both use a 24mm spindle

Mechanically compatible

Token

BB38624PS

Both use a 24mm spindle

Mechanically compatible

Token

BB386PS

Both use a 24mm spindle

Mechanically compatible

Token

BB4124PS

Both use a 24mm spindle

Mechanically compatible

Token

BB46BR24

Both use a 24mm spindle

Mechanically compatible

Token

BB47R24

Both use a 24mm spindle

Mechanically compatible

Token

BB47V24

Both use a 24mm spindle

Mechanically compatible

Token

BB841PS

Both use a 24mm spindle

Mechanically compatible

Token

BB841T-41

Both use a 24mm spindle

Mechanically compatible

Token

BB841T-42

Both use a 24mm spindle

Mechanically compatible

Token

BB841T-46

Both use a 24mm spindle

Mechanically compatible

Cybrei

BB86 Bottom Bracket (Shimano 24mm)

Both use a 24mm spindle

Chains for this crankset12

Mechanically compatible

Shimano

CN-HG54 DEORE MTB CHAIN 10s

Both are 10-speed

Mechanically compatible

Shimano

CN-HG95 HG-X CHAIN 10s

Both are 10-speed

Mechanically compatible

KMC

DLC 10

Both are 10-speed

Mechanically compatible

KMC

e10

Both are 10-speed

Mechanically compatible

FSA

K-FORCE LIGHT 10 SPEED CHAIN

Both are 10-speed

Mechanically compatible

SRAM

PC-1031 Chain

Both are 10-speed

Mechanically compatible

SRAM

PC-1051 Chain

Both are 10-speed

Mechanically compatible

SRAM

PC-1071 Chain

Both are 10-speed

Mechanically compatible

SRAM

PC-1091R Chain

Both are 10-speed

Mechanically compatible

FSA

Team Issue Chain

Both are 10-speed

Mechanically compatible

KMC

X10

Both are 10-speed

Mechanically compatible

KMC

X10SL

Both are 10-speed

Frequently Asked Questions

What fits Shimano TIAGRA CRANKSET 3X10s?

On this page we list chainrings that fit this crankset, front derailleurs for this crankset, bottom brackets for this crankset, chains for this crankset. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.

Can I use a higher or lower speed chain with Shimano TIAGRA CRANKSET 3X10s?

No. Shimano TIAGRA CRANKSET 3X10s is a 10-speed component and needs a 10-speed chain. Chains for different speed counts have different external widths and inner-plate profiles, which causes poor shifting or interference with the neighbouring sprockets.
