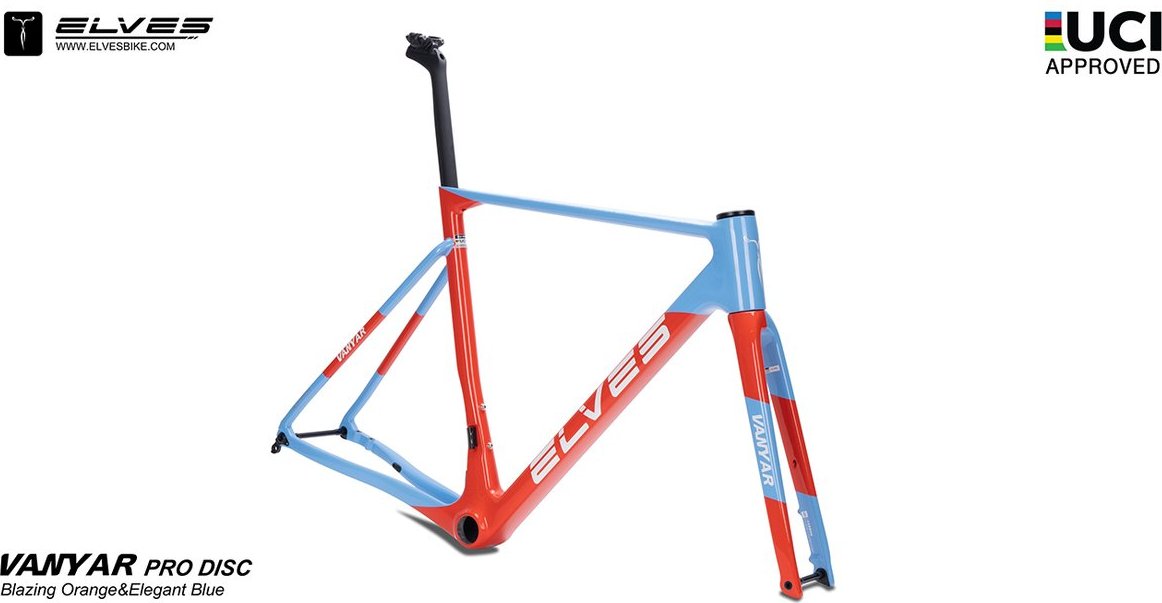

Elves Vanyar PRO

Frame

Vanyar PRO

Specifications

Manufacturer
Elves
Name
Vanyar PRO
Discipline
Road[1]
Material
Carbon
Head Tube
Tapered
Upper S.H.I.S
IS42/28.6
Lower S.H.I.S
IS52/40
Max Tyre Width (mm)
30
Wheel Sizes
700c / 29"
Rear Axle Standard
12 × 142 mm
Rear Derailleur Mount
Standard Hanger[2]
BB Standard
BB386 EVO[3]
Disc Brake Mount
Flat Mount
Di2 Compatible
Yes
Cable Routing
Integrated
Sources
  1. [1] AI-extracted, not yet checked against a named source (added 4 May 2026): Discipline
  2. [2] trevscycleshop.co.nz, checked 17 Aug 2026: Rear Derailleur Mount
  3. [3] store.elvesbike.com, checked 23 Aug 2026: BB Standard

Included Components

  • fork
    Elves Vanyar PRO Fork
  • headset
    Elves Vanyar PRO Headset
  • seatpost
    Elves Vanyar PRO Seatpost
  • bottom bracket
    Elves Vanyar PRO Bottom Bracket

Compatibility

Elves Vanyar PRO is a Elves road frame. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Brake calipers this frame mounts20

2-PISTON FLAT MOUNT BRAKE CALIPERMechanically compatible

Shimano

2-PISTON FLAT MOUNT BRAKE CALIPER

  • Both use a flat mount disc brake
Apex 1 Hydraulic Disc BrakeMechanically compatible

SRAM

Apex 1 Hydraulic Disc Brake

  • Both use a flat mount disc brake
Apex Disc BrakeMechanically compatible

SRAM

Apex Disc Brake

  • Both use a flat mount disc brake
Brake Caliper (BR-R03A-140R)Mechanically compatible

LTWOO

Brake Caliper (BR-R03A-140R)

  • Both use a flat mount disc brake
Brake Caliper (BR-R03B-140R)Mechanically compatible

LTWOO

Brake Caliper (BR-R03B-140R)

  • Both use a flat mount disc brake
Brake Caliper (BR-R04A-160F)Mechanically compatible

LTWOO

Brake Caliper (BR-R04A-160F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R04B-160F)Mechanically compatible

LTWOO

Brake Caliper (BR-R04B-160F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R06A-140F)Mechanically compatible

LTWOO

Brake Caliper (BR-R06A-140F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R06B-140F)Mechanically compatible

LTWOO

Brake Caliper (BR-R06B-140F)

  • Both use a flat mount disc brake
Brake Caliper (BR-R07A-160R)Mechanically compatible

LTWOO

Brake Caliper (BR-R07A-160R)

  • Both use a flat mount disc brake
Brake Caliper (BR-R07B-160R)Mechanically compatible

LTWOO

Brake Caliper (BR-R07B-160R)

  • Both use a flat mount disc brake
EVO X2 FLATMOUNTMechanically compatible

Hope

EVO X2 FLATMOUNT

  • Both use a flat mount disc brake
Force Aero Disc BrakeMechanically compatible

SRAM

Force Aero Disc Brake

  • Both use a flat mount disc brake
RA7800 Hydraulic Brake Caliper Set (Road/Gravel)Mechanically compatible

WheelTop

RA7800 Hydraulic Brake Caliper Set (Road/Gravel)

  • Both use a flat mount disc brake
Red Aero Disc BrakeMechanically compatible

SRAM

Red Aero Disc Brake

  • Both use a flat mount disc brake
Rival 1 HRD DiscMechanically compatible

SRAM

Rival 1 HRD Disc

  • Both use a flat mount disc brake
Rival Aero Disc BrakeMechanically compatible

SRAM

Rival Aero Disc Brake

  • Both use a flat mount disc brake
RX4 SL FMMechanically compatible

Hope

RX4 SL FM

  • Both use a flat mount disc brake
105 FRONT BRAKE CALIPERMechanically compatible

Shimano

105 FRONT BRAKE CALIPER

  • Both use a flat mount disc brake
105 HYDRAULIC DISC BRAKE FRONT CALIPERMechanically compatible

Shimano

105 HYDRAULIC DISC BRAKE FRONT CALIPER

  • Both use a flat mount disc brake

Headsets for this head tube20

110 Ceramic IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

110 Ceramic IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
110 IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

110 IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
DropSet 2Mechanically compatible

Chris King

DropSet 2

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
DropSet 5Mechanically compatible

Chris King

DropSet 5

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Fifty IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Fifty IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Forty IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Forty IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Hellbender 70 IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Hellbender 70 IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Hellbender 70 Lite IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Hellbender 70 Lite IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Hellbender 70 Slam IS42/28.6 / IS52/40Mechanically compatible

Cane Creek

Hellbender 70 Slam IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
iRiX IS42/IS52Mechanically compatible

Industry Nine

iRiX IS42/IS52

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
Premium IS Headset - Integrated Standard - IS42/28.6 / IS52/40Mechanically compatible

Wolf Tooth

Premium IS Headset - Integrated Standard - IS42/28.6 / IS52/40

  • The upper cup is a IS42 fit
  • The lower cup is a IS52 fit
IS42/28.6 Upper CupShares a standard

Acros

IS42/28.6 Upper Cup

  • The upper cup is a IS42 fit
IS52 Lower CupShares a standard

Acros

IS52 Lower Cup

  • The lower cup is a IS52 fit
IS52/30 Lower CupShares a standard

Acros

IS52/30 Lower Cup

  • The lower cup is a IS52 fit
IS52/40 Lower CupShares a standard

Acros

IS52/40 Lower Cup

  • The lower cup is a IS52 fit
Classic Integrated IS Upper HeadsetShares a standard

Ritchey

Classic Integrated IS Upper Headset

  • The upper cup is a IS42 fit
Comp Integrated IS Lower HeadsetShares a standard

Ritchey

Comp Integrated IS Lower Headset

  • The lower cup is a IS52 fit
MK0 IS Headset - Integrated Standard - IS42/28.6 UpperShares a standard

Wolf Tooth

MK0 IS Headset - Integrated Standard - IS42/28.6 Upper

  • The upper cup is a IS42 fit
Premium IS52 Aero Headset for Semi-Internal RoutingShares a standard

Wolf Tooth

Premium IS52 Aero Headset for Semi-Internal Routing

  • The lower cup is a IS52 fit
Premium IS52 Internal Aero Headset for ENVE IN-Route SystemShares a standard

Wolf Tooth

Premium IS52 Internal Aero Headset for ENVE IN-Route System

  • The lower cup is a IS52 fit

Bottom brackets for this frame shell20

386EVO ABEC-3 BB for 24/22mm (SRAM) CranksMechanically compatible

Wheels Manufacturing

386EVO ABEC-3 BB for 24/22mm (SRAM) Cranks

  • Both are bb386 evo bottom bracket shells
386EVO ABEC-3 BB for 24mm (Shimano) CranksMechanically compatible

Wheels Manufacturing

386EVO ABEC-3 BB for 24mm (Shimano) Cranks

  • Both are bb386 evo bottom bracket shells
386EVO ABEC-3 BB for 29mm SRAM DUB Compatible CranksMechanically compatible

Wheels Manufacturing

386EVO ABEC-3 BB for 29mm SRAM DUB Compatible Cranks

  • Both are bb386 evo bottom bracket shells
386EVO ABEC-3 BB for 30mm CranksMechanically compatible

Wheels Manufacturing

386EVO ABEC-3 BB for 30mm Cranks

  • Both are bb386 evo bottom bracket shells
386EVO ABEC-3 BB for M30 28/30mm PRAXIS - Compatible CranksMechanically compatible

Wheels Manufacturing

386EVO ABEC-3 BB for M30 28/30mm PRAXIS - Compatible Cranks

  • Both are bb386 evo bottom bracket shells
386EVO Angular Contact BB for 24/22mm (SRAM) CranksMechanically compatible

Wheels Manufacturing

386EVO Angular Contact BB for 24/22mm (SRAM) Cranks

  • Both are bb386 evo bottom bracket shells
386EVO Angular Contact BB for 24mm (Shimano) CranksMechanically compatible

Wheels Manufacturing

386EVO Angular Contact BB for 24mm (Shimano) Cranks

  • Both are bb386 evo bottom bracket shells
386EVO Angular Contact BB for 30mm CranksMechanically compatible

Wheels Manufacturing

386EVO Angular Contact BB for 30mm Cranks

  • Both are bb386 evo bottom bracket shells
386EVO ZERØ Ceramic BB for 30mm CranksMechanically compatible

Wheels Manufacturing

386EVO ZERØ Ceramic BB for 30mm Cranks

  • Both are bb386 evo bottom bracket shells
BB386 Bottom Bracket for SRAM DUB RoadMechanically compatible

Cybrei

BB386 Bottom Bracket for SRAM DUB Road

  • Both are bb386 evo bottom bracket shells
BB38624PRMechanically compatible

Token

BB38624PR

  • Both are bb386 evo bottom bracket shells
BB38624PSMechanically compatible

Token

BB38624PS

  • Both are bb386 evo bottom bracket shells
BB38625Mechanically compatible

Token

BB38625

  • Both are bb386 evo bottom bracket shells
BB38629Mechanically compatible

Token

BB38629

  • Both are bb386 evo bottom bracket shells
BB38629PMechanically compatible

Token

BB38629P

  • Both are bb386 evo bottom bracket shells
BB38630PMechanically compatible

Token

BB38630P

  • Both are bb386 evo bottom bracket shells
BB386EVO crank to PF86 41mm CeramicMechanically compatible

FSA

BB386EVO crank to PF86 41mm Ceramic

  • Both are bb386 evo bottom bracket shells
BB386PRMechanically compatible

Token

BB386PR

  • Both are bb386 evo bottom bracket shells
BB386PSMechanically compatible

Token

BB386PS

  • Both are bb386 evo bottom bracket shells
PF Saviour (BB386 / 24)Mechanically compatible

Token

PF Saviour (BB386 / 24)

  • Both are bb386 evo bottom bracket shells

Forks with a matching steerer and wheel size20

29er Full Carbon Rigid Mtb Plus ForkMechanically compatible

LightCarbon

29er Full Carbon Rigid Mtb Plus Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake CX Fork Gravel Carbon ForkMechanically compatible

LightCarbon

700C Disc Brake CX Fork Gravel Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Aero Gravel Bike ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Aero Gravel Bike Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
700C Disc Brake Gravel Carbon Fork Racing Gravel ForkMechanically compatible

LightCarbon

700C Disc Brake Gravel Carbon Fork Racing Gravel Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Allroad ForkMechanically compatible

Deda Elementi

Allroad Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
BelvaMechanically compatible

Formula

Belva

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber ZMechanically compatible

Marzocchi

Bomber Z

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1Mechanically compatible

Marzocchi

Bomber Z1

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 CoilMechanically compatible

Marzocchi

Bomber Z1 Coil

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z1 E-OptimizedMechanically compatible

Marzocchi

Bomber Z1 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2Mechanically compatible

Marzocchi

Bomber Z2

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Bomber Z2 E-OptimizedMechanically compatible

Marzocchi

Bomber Z2 E-Optimized

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Cutthroat Carbon ForkMechanically compatible

Salsa

Cutthroat Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Firestarter Carbon ForkMechanically compatible

Salsa

Firestarter Carbon Fork

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
🚲Mechanically compatible

Lauf

Grit SL

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
JOSH BRYCELAND SELVAMechanically compatible

Formula

JOSH BRYCELAND SELVA

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Pista LeggeraMechanically compatible

Columbus

Pista Leggera

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
RC32 29Mechanically compatible

X-Fusion

RC32 29

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels
Road In-Route Fork 43mmMechanically compatible

ENVE

Road In-Route Fork 43mm

  • Both use a tapered 1-1/8" to 1.5" steerer
  • Both are built for 700c wheels

Frequently Asked Questions

What fits Elves Vanyar PRO?

On this page we list brake calipers this frame mounts, headsets for this head tube, bottom brackets for this frame shell, forks with a matching steerer and wheel size. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.

Can I mix Elves Vanyar PRO with MTB components?

Elves Vanyar PRO is recorded as a road component. Some standards do carry across (cassette spacing at a given speed count, for instance), but cable pull ratio and chainline frequently differ between road and MTB groups, so check the specific pairing rather than assuming it carries over.
