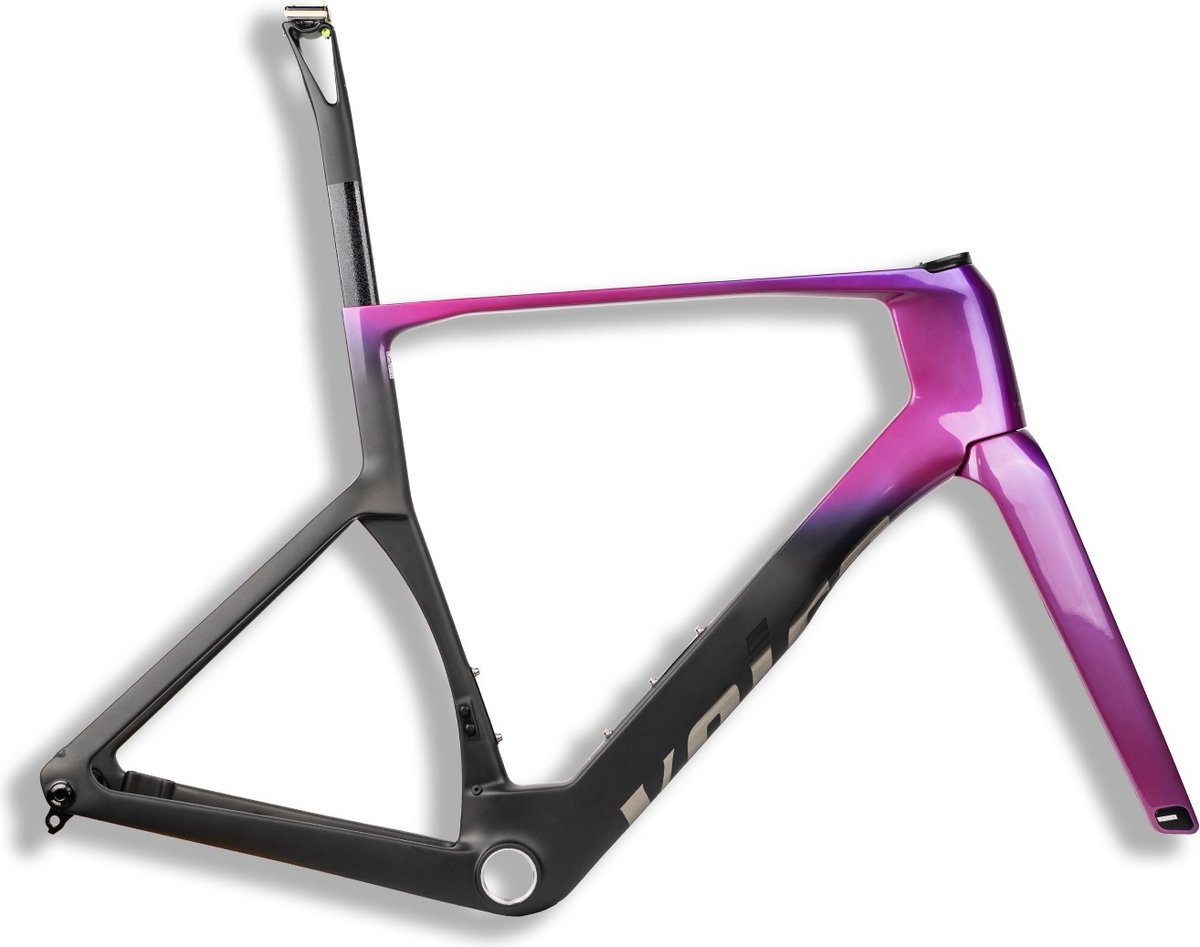

Voicevelo VFV ECHO Aero Road Bike Frameset

Frame

VFV ECHO Aero Road Bike Frameset
Buy at Panda Podium

Specifications

Manufacturer
Voicevelo
Name
VFV ECHO Aero Road Bike Frameset
MPN
VFV-01-ECHO
Discipline
Road
Material
Carbon
Head Tube
Straight
Max Tyre Width (mm)
34
Wheel Sizes
700c / 29"
Frame Size
S, M, L, XL
Front Axle Standard
12 × 100 mm
Rear Axle Standard
12 × 142 mm
Rear Derailleur Mount
UDH
BB Standard
T47 INTERNAL[1]
BB Thread Type
T47[1]
Di2 Compatible
Yes
Cable Routing
Internal
Max Chainring Size (T)
56
Weight (g)
975
Sources
  1. [1] voicevelo.com, checked 23 Aug 2026: BB Standard, BB Thread Type

Offers

  • Panda Podium
    Panda Podium$1,399.00
    Buy

Compatibility

Voicevelo VFV ECHO Aero Road Bike Frameset is a Voicevelo road frame. Everything listed below was matched on a specification we hold for both parts: the interface each pairing actually depends on, such as freehub body, speed count, actuation or mounting standard. Where we could not verify that interface, the part is left out rather than assumed to fit.

Bottom brackets for this frame shell20

BB47R24Mechanically compatible

Token

BB47R24

  • Both are t47 internal bottom bracket shells
BB47R29Mechanically compatible

Token

BB47R29

  • Both are t47 internal bottom bracket shells
BB47R30Mechanically compatible

Token

BB47R30

  • Both are t47 internal bottom bracket shells
BB47R386Mechanically compatible

Token

BB47R386

  • Both are t47 internal bottom bracket shells
BB47RGXPMechanically compatible

Token

BB47RGXP

  • Both are t47 internal bottom bracket shells
BB47V24Mechanically compatible

Token

BB47V24

  • Both are t47 internal bottom bracket shells
BB47V25Mechanically compatible

Token

BB47V25

  • Both are t47 internal bottom bracket shells
BB47V29Mechanically compatible

Token

BB47V29

  • Both are t47 internal bottom bracket shells
BB47V386Mechanically compatible

Token

BB47V386

  • Both are t47 internal bottom bracket shells
BB47VGXPMechanically compatible

Token

BB47VGXP

  • Both are t47 internal bottom bracket shells
Pro-Tech Bottom Bracket - T47x68Mechanically compatible

Campagnolo

Pro-Tech Bottom Bracket - T47x68

  • Both are t47 internal bottom bracket shells
Pro-Tech Bottom Bracket - T47x86Mechanically compatible

Campagnolo

Pro-Tech Bottom Bracket - T47x86

  • Both are t47 internal bottom bracket shells
QCK-Tech Bottom Bracket - T47x68Mechanically compatible

Campagnolo

QCK-Tech Bottom Bracket - T47x68

  • Both are t47 internal bottom bracket shells
QCK-Tech Bottom Bracket - T47x86Mechanically compatible

Campagnolo

QCK-Tech Bottom Bracket - T47x86

  • Both are t47 internal bottom bracket shells
T47 - I.B. SHIMANOMechanically compatible

Praxis

T47 - I.B. SHIMANO

  • Both are t47 internal bottom bracket shells
T47 - SHIMANOMechanically compatible

Praxis

T47 - SHIMANO

  • Both are t47 internal bottom bracket shells
T47 ABEC-3 BB for 24/22mm (SRAM) CranksMechanically compatible

Wheels Manufacturing

T47 ABEC-3 BB for 24/22mm (SRAM) Cranks

  • Both are t47 internal bottom bracket shells
T47 ABEC-3 BB for 24mm (Shimano) CranksMechanically compatible

Wheels Manufacturing

T47 ABEC-3 BB for 24mm (Shimano) Cranks

  • Both are t47 internal bottom bracket shells
T47 Angular Contact BB for 24/22mm (SRAM) CranksMechanically compatible

Wheels Manufacturing

T47 Angular Contact BB for 24/22mm (SRAM) Cranks

  • Both are t47 internal bottom bracket shells
T47 Angular Contact BB for 24mm (Shimano) CranksMechanically compatible

Wheels Manufacturing

T47 Angular Contact BB for 24mm (Shimano) Cranks

  • Both are t47 internal bottom bracket shells

Forks with a matching steerer and wheel size20

Adventure ForkShares a standard

ENVE

Adventure Fork

  • Both are built for 700c wheels
All-Road In-Route Fork 47mmShares a standard

ENVE

All-Road In-Route Fork 47mm

  • Both are built for 700c wheels
All-Road In-Route Fork 51mmShares a standard

ENVE

All-Road In-Route Fork 51mm

  • Both are built for 700c wheels
AR Disc ForkShares a standard

ENVE

AR Disc Fork

  • Both are built for 700c wheels
Disc Brake ForkShares a standard

ENVE

Disc Brake Fork

  • Both are built for 700c wheels
Gravel Disc Fork 47mmShares a standard

ENVE

Gravel Disc Fork 47mm

  • Both are built for 700c wheels
Gravel Disc Fork 50mmShares a standard

ENVE

Gravel Disc Fork 50mm

  • Both are built for 700c wheels
Gravel In-Route Fork 53mmShares a standard

ENVE

Gravel In-Route Fork 53mm

  • Both are built for 700c wheels
Gravel In-Route Fork 55mmShares a standard

ENVE

Gravel In-Route Fork 55mm

  • Both are built for 700c wheels
Helm Coil 29Shares a standard

Cane Creek

Helm Coil 29

  • Both are built for 700c wheels
Helm MKIIShares a standard

Cane Creek

Helm MKII

  • Both are built for 700c wheels
Helm MKII 29Shares a standard

Cane Creek

Helm MKII 29

  • Both are built for 700c wheels
Helm MKII Air 29Shares a standard

Cane Creek

Helm MKII Air 29

  • Both are built for 700c wheels
MinimalShares a standard

Columbus

Minimal

  • Both are built for 700c wheels
NERO CShares a standard

Formula

NERO C

  • Both are built for 700c wheels
NERO RShares a standard

Formula

NERO R

  • Both are built for 700c wheels
New Gravel ForkShares a standard

LightCarbon

New Gravel Fork

  • Both are built for 700c wheels
Ribbon LT 29"Shares a standard

MRP

Ribbon LT 29"

  • Both are built for 700c wheels
Ribbon LT Coil 29"Shares a standard

MRP

Ribbon LT Coil 29"

  • Both are built for 700c wheels
Ribbon SL Rally 29"Shares a standard

MRP

Ribbon SL Rally 29"

  • Both are built for 700c wheels

Frequently Asked Questions

What fits Voicevelo VFV ECHO Aero Road Bike Frameset?

On this page we list bottom brackets for this frame shell, forks with a matching steerer and wheel size. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.

Can I mix Voicevelo VFV ECHO Aero Road Bike Frameset with MTB components?

Voicevelo VFV ECHO Aero Road Bike Frameset is recorded as a road component. Some standards do carry across (cassette spacing at a given speed count, for instance), but cable pull ratio and chainline frequently differ between road and MTB groups, so check the specific pairing rather than assuming it carries over.
