Shimano CLARIS CRANKSET 2X8s Compatibility Chart
The rest of the Shimano Claris groupset
Other Shimano Claris parts with a compatibility chart of their own. They are listed because they share the groupset, not because they have been checked against this part. The verified matches are further down the page.
Shifters

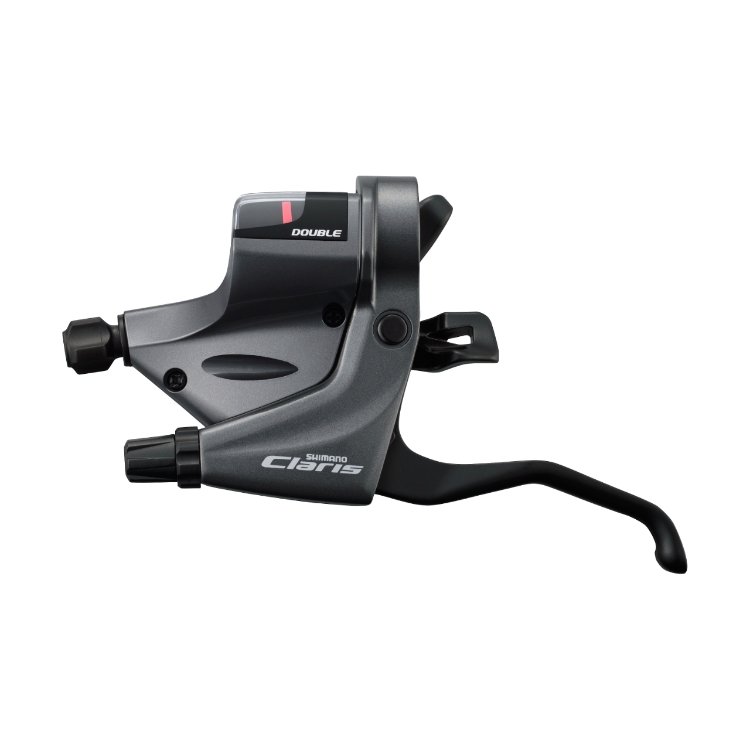

- Shimano CLARIS LEFT SHIFT/BRAKE LEVER FLAT BAR ROAD 2X8s
- Shimano CLARIS BRAKE LEVER

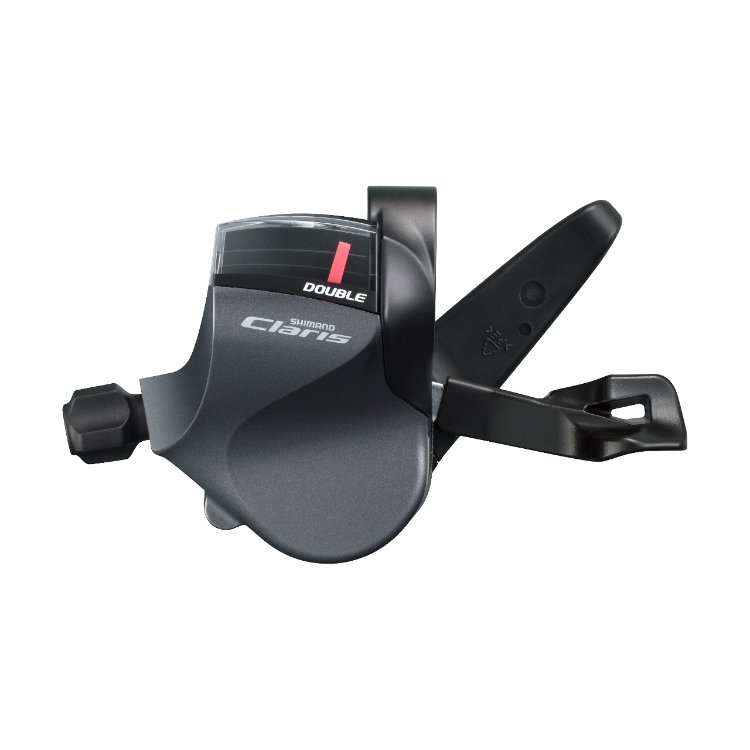

- Shimano CLARIS LEFT SHIFT LEVER FLAT BAR ROAD 2X8s

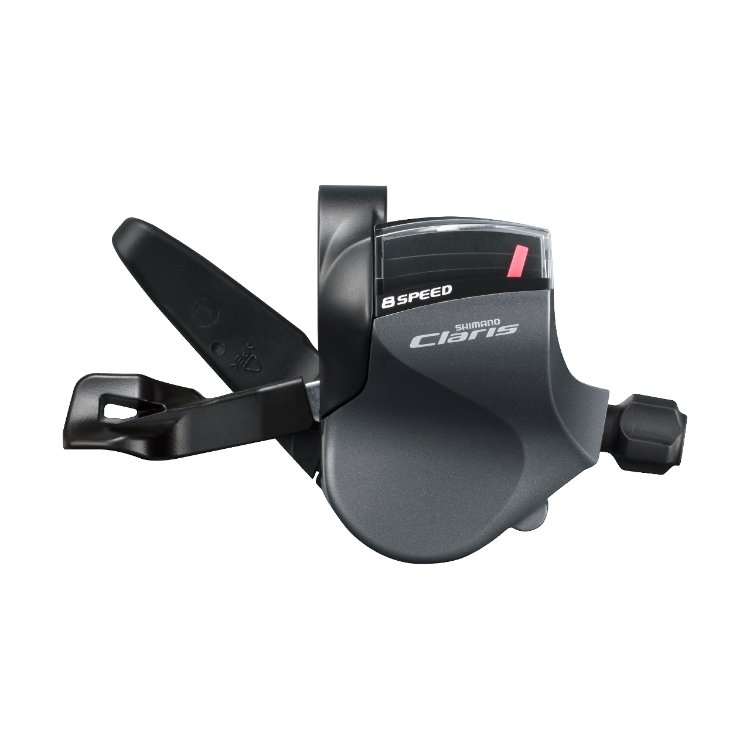

- Shimano CLARIS RIGHT SHIFT LEVER FLAT BAR ROAD 8s
- Shimano CLARIS LEFT SHIFT LEVER FLAT BAR ROAD 3X8s

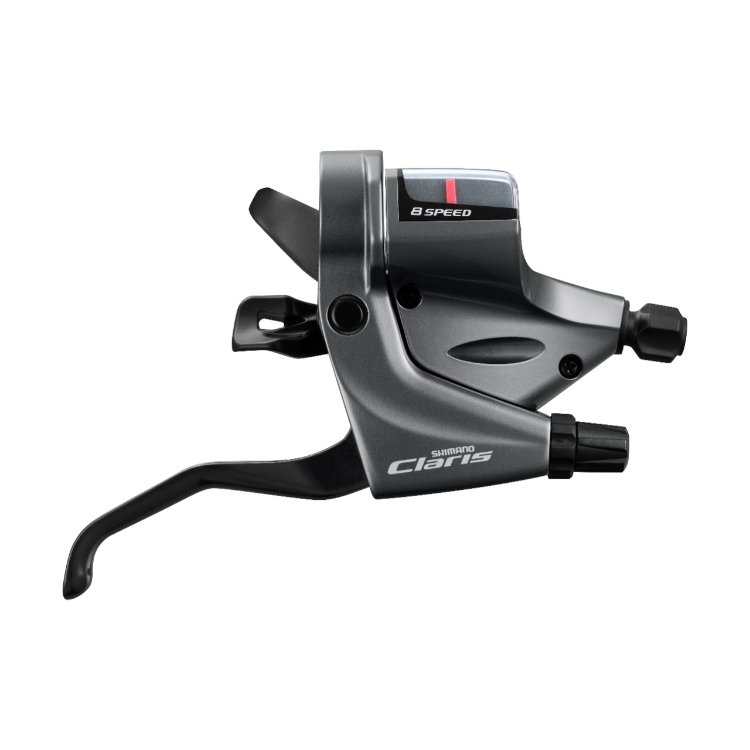

- Shimano CLARIS RIGHT SHIFT/BRAKE LEVER FLAT BAR ROAD 8s

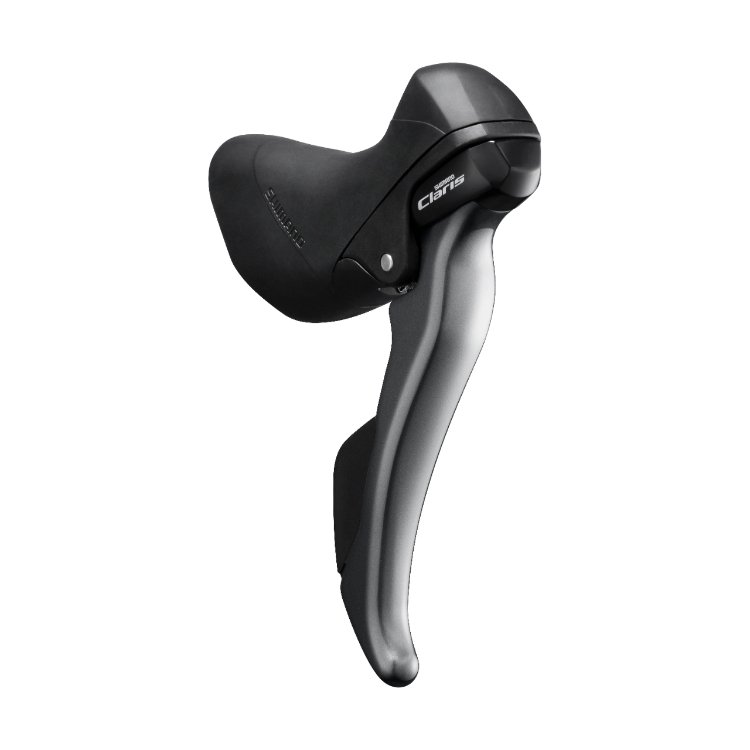

- Shimano CLARIS DUAL CONTROL LEVER 8s
- Shimano CLARIS DUAL CONTROL LEVER 3X8s

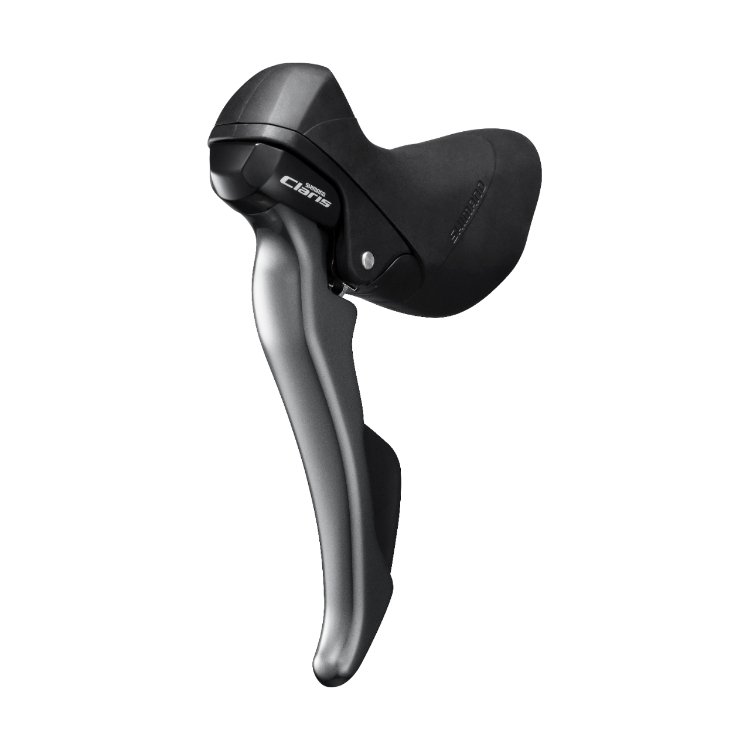

- Shimano CLARIS DUAL CONTROL LEVER 2X8s
- Shimano CLARIS LEFT SHIFT/BRAKE LEVER FLAT BAR ROAD 3X8s
Front derailleurs
Rear derailleurs
Only pairings verified on both parts’ specifications are listed. Confirm with the manufacturer before buying.
Chainrings that fit this crankset
20 total resultsMechanically compatible
20Every interface this pairing depends on was checked and matched, but the parts come from different ranges, so expect to confirm shift feel and finish yourself.
FSA
1x megatooth alloy
What we checked
- Both are 110mm BCD
FSA
2x chainring
What we checked
- Both are 110mm BCD
Shimano
Chainring 30T for FC-U6000-2
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 32T for FC-U6010-2
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 34T for FC-4700
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 34T for FC-R3000
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 34T for FC-R3000(with CG)
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 34T for FC-R7000(Black)
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 34T for FC-R7000(Silver)
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 34T for FC-R7100
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 34T for FC-R8000
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 34T for FC-RS510
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 34T for FC-RS520
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 36T for FC-4700
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 36T for FC-R7000(Black)
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 36T for FC-R7000(Silver)
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 36T for FC-R7100
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 36T for FC-R8000
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 36T for FC-RS510
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Shimano
Chainring 38T for FC-RX610-1
What we checked
- Both use the 4-bolt asymmetric 110bcd interface
Front derailleurs for this crankset
20 total resultsRecommended
2Every interface this pairing depends on was checked and matched, and the two parts are sold as part of the same system.
Shimano
CLARIS FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X8s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
CLARIS FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X8s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Mechanically compatible
18Every interface this pairing depends on was checked and matched, but the parts come from different ranges, so expect to confirm shift feel and finish yourself.
Road
Shimano
105 Di2 FRONT DERAILLEUR 2X12s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
105 FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X11s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
105 FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X12s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
105 FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X11s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
105 FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X12s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
DURA-ACE Di2 FRONT DERAILLEUR 2X11s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
DURA-ACE Di2 FRONT DERAILLEUR 2X12s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
DURA-ACE FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X11s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
DURA-ACE FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X11s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
SORA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X9s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
SORA FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X9s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
TIAGRA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X10s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
TIAGRA FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X10s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
ULTEGRA Di2 FRONT DERAILLEUR 2X11s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
ULTEGRA Di2 FRONT DERAILLEUR 2X12s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
ULTEGRA FRONT DERAILLEUR (BRAZED-ON MOUNT) 2X11s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Shimano
ULTEGRA FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X11s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
General
Shimano
TOURNEY A070 FRONT DERAILLEUR (CLAMP BAND MOUNT) 2X7s
What we checked
- Both are set up for 2x
- Both are Shimano drivetrain parts
- Both are built around a 43.5 mm chainline
Bottom brackets for this crankset
20 total resultsMechanically compatible
20Every interface this pairing depends on was checked and matched, but the parts come from different ranges, so expect to confirm shift feel and finish yourself.
Wheels Manufacturing
386EVO ABEC-3 BB for 24mm (Shimano) Cranks
What we checked
- Both use a 24mm spindle
Wheels Manufacturing
386EVO Angular Contact BB for 24mm (Shimano) Cranks
What we checked
- Both use a 24mm spindle
Token
878
What we checked
- Both use a 24mm spindle
Wheels Manufacturing
BB30 Outboard ABEC-3 BB for 24mm Cranks (Shimano)
What we checked
- Both use a 24mm spindle
Wheels Manufacturing
BB30 Outboard Angular Contact BB for 24mm Cranks (Shimano)
What we checked
- Both use a 24mm spindle
Wheels Manufacturing
BB30 Outboard Ceramic Hybrid BB for 24mm Cranks (Shimano)
What we checked
- Both use a 24mm spindle
Wheels Manufacturing
BB30 Outboard ZERØ Ceramic BB for 24mm Cranks (Shimano)
What we checked
- Both use a 24mm spindle
Token
BB30AR
What we checked
- Both use a 24mm spindle
Token
BB3724
What we checked
- Both use a 24mm spindle
Token
BB38624PS
What we checked
- Both use a 24mm spindle
Token
BB386PS
What we checked
- Both use a 24mm spindle
Token
BB4124PS
What we checked
- Both use a 24mm spindle
Token
BB46BR24
What we checked
- Both use a 24mm spindle
Token
BB47R24
What we checked
- Both use a 24mm spindle
Token
BB47V24
What we checked
- Both use a 24mm spindle
Token
BB841PS
What we checked
- Both use a 24mm spindle
Token
BB841T-41
What we checked
- Both use a 24mm spindle
Token
BB841T-42
What we checked
- Both use a 24mm spindle
Token
BB841T-46
What we checked
- Both use a 24mm spindle
Cybrei
BB86 Bottom Bracket (Shimano 24mm)
What we checked
- Both use a 24mm spindle
Chains for this crankset
8 total resultsMechanically compatible
8Every interface this pairing depends on was checked and matched, but the parts come from different ranges, so expect to confirm shift feel and finish yourself.
Shimano
CN-HG40 HG CHAIN 6, 7, 8s
What we checked
- Both are 8-speed
KMC
E8
What we checked
- Both are 8-speed
SRAM
PC-830 chain
What we checked
- Both are 8-speed
SRAM
PC-850 Chain
What we checked
- Both are 8-speed
SRAM
PC-870 Chain
What we checked
- Both are 8-speed
KMC
X8
What we checked
- Both are 8-speed
KMC
Z8.1
What we checked
- Both are 8-speed
KMC
Z8.3
What we checked
- Both are 8-speed
Frequently Asked Questions
What fits Shimano CLARIS CRANKSET 2X8s?
On this page we list chainrings that fit this crankset, front derailleurs for this crankset, bottom brackets for this crankset, chains for this crankset. Each listing was matched on a specification we hold for both parts; anything we could not verify is omitted rather than assumed to fit.
Can I use a higher or lower speed chain with Shimano CLARIS CRANKSET 2X8s?
No. Shimano CLARIS CRANKSET 2X8s is an 8-speed component and needs an 8-speed chain. Chains for different speed counts have different external widths and inner-plate profiles, which causes poor shifting or interference with the neighbouring sprockets.
